This model supports not only the U.S. GPS system, but also the Russian GLONASS and the European Galileo satellites

Small wrist top GPS device with easy to read display, electronic compass, barometrical altimeter, USB and BlueTooth interface. Optional heart rate, speed, cadence and temperature sensor.

The GARMIN Foretrex 601 is very easy to use, supports multiple languages, has an extremely sensitive antenna and supports the U.S. GPS, the Russian GLONASS and the European Galileo satellites. It is the perfect partner for any outdoor activities. It helps to navigate, displays and records information about your movement, such as the current heading and speed, the travelled path (track), maximum and average speed, ascent and descent etc. The Foretrex 601 has an electronic compass, a barometrical altimeter and it can receive data from a heart rate monitor, a speed and cadence sensor and from a wireless temperature sensor. The built-in USB interface provides data exchange with a PC and the device can communicate with smartphones via BlueTooth. The Foretrex 601 is powered by batteries, it supports a watch mode to increase battery lifetime.

Contents: Features - Overview - Main Pages - Price - Options - Downloads - Order

Features:

Wrist top device, robust, very handy
Easy to read display with background illumination (200x128 pixels)
Multilingual user interface in Czech, Danish, Dutch, English, Finnish, French, German, Italian, Norwegian, Polish, Portuguese, Spanish and Swedish
Integrated GPS receiver with very sensitive built-in antenna, supports GPS, GLONASS and Galileo satellites
Electronic compass to check heading while not moving¹ (can be turned off so safe power)
Barometrical altimeter for precise elevation recording²
Heart rate monitor, requires optional chest belt with heart rate sensor. The chest belt uses a digitally coded signal, which means, once a heart beat sensor and the GPS have been paired, the GPS will never receive a conflicting signal from another sensor. So you can exercise in close proximity to other sensors without fear of interference.
Speed and cadence monitor, requires optional speed and cadence sensor. Measures the number of revolutions of the back wheel and the crank arm with magnets and a wireless sensor. Like the heart rate monitor, this sensor uses a digitally coded signal. Once paired with the Oregon 550t, the GPS will never receive a conflicting signal from another sensor. So you can exercise in close proximity to other sensors without fear of interference.
Powered by batteries (2x AAA, last about 48 h in GPS mode, 1 week in UltraTrac mode and 1 month in watch mode)
Short time to first fix (TTFF³: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available)
Supports WAAS/EGNOS
Supports many different datum (coordinate systems)
Supports various display formats include the Swiss Grid
Firmware stored in Flash-Memory, can be updated by the user
Operating temperatures -20 .. 70°C (-4° .. 158°F)
USB interface (connection cable included)
Dimensions: 74x44x23 mm (2.9x1.7x0.9 inches)
Weight: 88 g (3.1 ounces) including batteries
Water resistant up to approx. 3 feet (1 meter) for about 30 minutes (IPX7)

¹) In order to check the heading with a GPS, a minimal movement with a speed of at least 5..8 km/h (3..5 mi/h) is required. Where no movement is not possible, a compass is needed.
²) Even though a GPS provides accurate elevation information, the value slightly varies continuously. A barometrical altimeter is therefore more accurate, especially when summarizing elevation changes.
³) TTFF: Time To First Fix, time until the first information about the current position is acquired.

Information for navigation:

Stores up to 500 waypoints with name (up to 8 characters), icon (choice of 31 symbols) and coordinates
Stores 20 reversible route with up to 125 waypoints per route. Shows the current position in relation to these waypoints (direction and distance)
Current position (longitude, latitude, altitude)
Current accuracy of the position information
Information about the course (turn, off course, to course)
Estimated travel time to the next waypoint, rsp. to the final destination
Estimated arrival time at the next waypoint, rsp. at the final destination
Current time
Current bearing
Current, average and maximum speed
Trip duration and distance (Odometer)
Stores up to 10'000 track points(travelled path)
Time of sunrise and sunset
Supports metric, nautical and U.S. units

To table of contents

GARMIN Foretrex 601 overview:

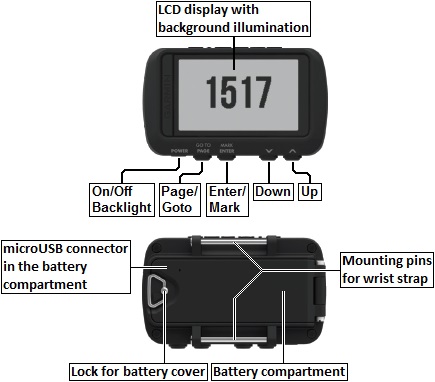

Buttons and connectors of the GARMIN Foretrex 601

To table of contents

Main pages of the GARMIN Foretrex 601:

Note: The images below show the display of the Foretrex 601 in true resolution (200x128 pixels). This does not necessarily mean that the display is shown it its true size (46x27 mm). The actual size of these images depends on the properties of your display. Some of the pages are configurable, the pictures shown are just examples. For the data fields, there is a choice of 47 different values, see the table below.

Menu	Map	Compass	Elevation Profile

Current date and time Manage waypoints Manage tracks (travelled pathes) Manage routes Setup, various settings such as time format, language, units etc. Connect with wireless monitors, e.g. heart rate sensor or cadence sensor (not shown) Connect with smartphone (not shown) Sun and moon, time of rise and set, moon phase (not shown) GPS (not shown) Jumpmaster (not shown)	Battery and GPS status Current heading Map with current location (triangle), waypoint (house) and travelled path (track) Scale	Battery and GPS status Odometer ) Current elevation ) Current heading *) You may chose to display one of the values listed in the table below.	Battery and GPS status Current elevation above sea level Elevation profile of the travelled path Scale

Coordinates	Waypoint	GPS	Sun / Moon

Primary, selectable coordinates (e.g. Swiss Grid with map datum CH-1903) Secondary, selectable coordinates (e.g. degree and minutes)	Symbol Name Elevation above sea level Coordinates Options: Delete waypoint, show waypoint on map, navigate to waypoint, other options: project waypoint, hunt and fish near waypoint, sun and moon rise and set at waypoint, send waypoint to another device	Upper image: Signal strength Numbers of the satellites Lower image: Number and position of the satellites in the sky	Current or selected date Time of sunrise and sunset at the current position at the selected date Time of moonrise and moonset at the current position at the selected date Moon phase at the current position at the selected date

Data fields on pages with user selectable data fields:

For each data field, you can choose one from the following 47 values.
You can configure the device to show values in english or metric units.

No	Name	Explanation
1	AMB PRESS	Ambient pressure: Uncalibrated current air pressure.
2	AVG ASCENT	Average ascent speed since last reset.
3	AVG DESCNT	Average descent speed since last reset.
4	BAROMETER	Barometer: Calibrated current air pressure.
5	BEARING	Direction from the current location to the destination.
6	CADENCE	Revolutions of the crank arm per minute (requires optional speed and cadence sensor).
7	COURSE	The direction from the starting location to the destination or from one waypoint to the next waypoint.
8	ELEVATION	Current elevation above sea level.
9	FINAL DEST	Final destination: Name of the final destination (last waypoint on the current route).
10	FINAL DIST	Final destination distance: Distance from the current location to the final destination (straight line).
11	FINAL ETA	Estimated time of arrival at the final destination.
12	FINAL ETE	Estimated time en route: Estimated time required to travel from the current location to the final destination.
13	GLIDE RATIO	The ratio of the horizontal distance traveled to the change in the vertical distance.
14	GR DEST	Glide ratio destination: The glide ratio required to descend from the current location and elevation to the elevation of the final destination.
15	HEADING	Current moving direction.
16	HEART RATE	Current heart rate (requires optional heart rate monitor).
17	MAX ASCENT	Maximum ascent rate since last reset.
18	MAX DESCNT	Maximum descent rate since last reset.
19	MAX ELEVTN	Maximum elevation since last reset.
20	MAX SPEED	Maximum speed since last reset.
21	MAX TEMP	Maximum ambient temperature during the last 24 hours (requires optional temperature sensor).
22	MIN ELEVTN	Minimum elevation since last reset.
23	MIN TEMP	Minimum ambient temperature during the last 24 hours (requires optional temperature sensor).
24	MOV'N AVG	Moving average: Average speed while moving since last reset.
25	MOV'N TIME	Moving time: Elapsed time while moving since last reset.
26	NEXT DEST	Next destination: Name of the next waypoint on the current route.
27	NEXT DIST	Next distance: Distance from the current location to the next waypoint on the current route.
28	NEXT ETA	Next estimated arrival time: Estimated arrival time at the next waypoint on the current route.
29	NEXT ETE	Next estimated time en route: Estimated travel time from the current location to the next waypoint on the current route.
30	ODOMETER	Overall travelled distance.
31	OFF COURSE	Distance between your current location and the original course (straight line between start and destination or between the last and the next waypoints).
32	OVER'L SPD	Overall speed: Average speed including time while not moving since last reset.
33	SPEED	Current speed.
34	STOP TIME	Stopped time: Elapsed time while not moving since last reset.
35	SUNRISE	Time of sunrise at the current location.
36	SUNSET	Time of sunset at the current location.
37	TEMP	Current ambient temperature (requires optional temperature sensor).
38	TIME	Current time.
39	TO COURSE	Direction to travel to return to the planned route.
40	TOT ASCENT	Total ascent: The total elevation distance ascended since last reset.
41	TOT DESCNT	Total descent: The total elevation distance descended since last reset.
42	TOTAL TIME	Time elapsed since last reset.
43	TRIP ODOM	Trip odometer: Travelled distance since last reset.
44	TURN	The angle difference between the direction from your current location to the destination and the direction you are current heading.
45	VERT SPEED	Vertical speed: Rate of altitude gain or loss over time.
46	VMG	Velocity made good: Speed closing on a destination along a route.
47	VSPD DEST	Vertical speed destination: Measurement of the ascent / descent rate to a predetermined altitude.

To table of contents

Price:

GARMIN Foretrex 601			CHF 258
The package includes the following items: GARMIN Foretrex 601 Wrist strap with hook and loop fastener plus extension strap USB cable for data exchange with PC Quick start manual in various languages including German and English We will install the most recent version of the firmware available at the time of shipment

To table of contents

Options:

Power supply for GPS with mini or microUSB connector	CHF 29	[Picture and details]
Power supply without USB cable	CHF 17	[Picture and details]
12 USB charger	CHF 29	[Picture and details]
USB data cable with micro-USB connector (one such USB cable comes with the Foretrex 601)	CHF 17	[Picture and details]
Mounting kit for handlebar	CHF 22	[Picture and details]
HRM-Run chest belt with heart rate monitor and G-sensor V1 (same soft fabric strap like the premium chest belt) (Such a HRM-Run chest belt comes with the Forerunner 920XT Pack)	CHF 68	[Picture and details]
Belt for HRM-Run heart rate monitor	CHF 38	[Picture and details]
HRM-Run chest belt with heart rate monitor and G-sensor V2	CHF 68	[Picture and details]
Wireless Tempe temperature sensor	CHF 44	[Picture and details]

All options for the GARMIN Foretrex 601 in detail.

To table of contents

Downloads:

Here we provide additional documentation and software updates related to the Foretrex 601.

Owner's manual (as PDF):
- English (1.3 MB)
- French (1.3 MB)
- German (1.3 MB)
- Italian (1.3 MB)
Firmware Upgrade V2.70 (Use WebUpdater to install this version)
List of changes made with Firmware Upgrades

If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.

To table of contents

Order:

To order the GARMIN Foretrex 601 as well as options please:

Click on the price or the shopping basket symbol to add the item you wish to purchase to the shopping basket. Your browser must accept cookies, otherwise the shopping basket won't work.
If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents

Specifications and packaging of the products are subject to change without notice.
