Multi-function device: Full featured navigation system, Android based mobile phone, PDA and digital camera in one. GPS receiver with fast auto-routing, voice guidance including announcement of street names, color display with touchscreen, worldwide base map, pre-loaded detailed maps of all of Europe. Mobile phone, SMS/MMS, Google and Email services plus Web browser. Contacts and calendar. Supports Wi-Fi, Blue Tooth and USB interface. Well suited as navigation system in vehicles but may also be used as hand held device.

The GARMIN nüvifone A50 provides fast automatic route calculation - including multiple intermediate destinations if required - plus visual and voice guidance. and is equipped with a speech computer to announce the names of the roads. It is easy to use, has a large, easy to read color display with touch screen, an extremely sensitive antenna and an integrated worldwide base map. It is very well suited as a navigation system in cars, but you may also use it as a hand held device.
The nüvifone A50 has 3.06 GB built-in memory to store detailed maps with even more information, such as local roads, hotels, restaurants, public buildings and points of interest. This model comes with pre-loaded maps of all of Europe which occupy approximately 2.47 GB of memory including various language files. The remaining 607 MB memory is available to store additional detailed maps, MP3 and waypoint files or pictures.
The nüvifone A50 is also a high class mobile phone based on the Android operating system which supports all current technologies such as GSM, GPRS, Edge, UMTS and HSDPA. It provides SMS/MMS and email functionality, supports various Google services such as Google Search, Gmail or Google Maps, includes a web browser and . It also supports communication via Wi-Fi (also known as WLAN) and BlueTooth.
In addition, the nüvifone A50 is also a Personal Assistant with contacts and calendar and supports synchronization with Outlook. A 3 megapixel built-in digital camera and a MP3 player complete this device. There is a slot for an optional µSD memory module to store additional maps or other data and an USB connector to exchange data with a computer. The device is powered by a rechargeable battery. The package includes a USB connection cable, a charger unit, headset with microphone, a car mounting kit and a car power cord. The nüvifone A50 provides navigation information outdoors, in a car, in a train or even in an airplane (see MapSource examples).

Contents: Features - Navigation - Overview - Main Pages - Price - Options - Maps - Downloads - Order

Features:

The nüvifone A50 adapts the display to the current orientation.
Simply rotate the device to change from landscape to portrait mode and vice-a-versa.

Integrated 12 channel receiver with very sensitive built-in antenna.
User interface in 8 languages: Dutch, English, French, German, Italian, Portuguese, Spanisch and Turkish.
Voice prompting in 5 languages: British English, French, German, Italian and Turkish.
Integrated worldwide base map with countries of all continents including major cities and major highways.
3.06 GB built-in memory to store detailed maps with even more information, such as local roads, hotels, restaurants, public buildings and points of interest. This model comes with pre-loaded maps of all of Europe which occupy approximately 2.47 GB of memory including various language files. The remaining 607 MB memory is available to store additional detailed maps, waypoint files, music and pictures.
Slot for µSD memory card, supports SDHC memory cards (µSD memory cards available as options).
Routing speed: 12.25 (see GPS Routing Speed for details).
The travel kit provides the following features:
- Calculator
- World clock, alarms, world map showing day and night, stop watch with split time
- Currency and measurement converter
- MP3 player
- Picture viewer, displays pictures and provides various options, such as zooming, rotation etc.
- Supports Apps from the Android Market
Suited as a hand held device or to be used in any kind of vehicles. Comes with power cable and mounting kit with suction cup for quick mounting and dismounting to easily remove the GPS receiver (seamless switching between cars, theft protection etc.), does not require any installation.
Large, illuminated, easy to read LCD display with automatic backlight adjustment. Dimension: 75x50 mm (2.95x1.97 inches), resolution: 480x320 pixels, 65536 colors
Easy to operate via touchscreen.
Manual or automatic switching of the display between daytime and nighttime, based on time and the current position (changes the colors of the display between sunset and sunrise for more comfortable viewing) Daytime: bright background, nighttime: dark background.
Mobile phone with SMS/MMS and email functionality. Support for 2G- (GSM/GPRS/Edge 850/900/1800/1900) and 3G-networks (UMTS/HSDPA 850/1900/2100).
Wireless communication via Wi-Fi (also known as WLAN 802.11b+g) and BlueTooth.
Integrated 3 megapixel digital camera. Video recording (MPEG4 & H.263) and play-back (MPEG4 / H.264 / H.263 / WMV)
Free software download to synchronize contacts and appointments (calendar) with Outlook.
Device is not waterproof.
Powered by built-in replaceable, rechargeable battery (lasts up to 4 h when using the phone or 250 h standby) or by an external 12/24 V power source, e.g. from a car's cigarette lighter (power cord included). Additional batteries available as an option.
Short time to first fix (TTFF¹: approx. 1 second after a warm start, meaning there are valid coordinates of the satellites available, or approx. 38 seconds after a cold start, meaning there are no valid coordinates of the satellites available).
Data exchange with PC via USB V2 connector (connection cable included).
Firmware stored in Flash-Memory, can be updated by the user
Operating temperatures -15 .. 40°C (5 .. 104°F)
Dimensions: 62x116x13 mm (4.57x2.45x0.5 inches)
Weight: 150 g (5.3 ounces)

¹) TTFF: Time To First Fix, time until the first information about the local position is acquired.

To table of contents

Information for navigation:

Automatic computing of a route to a user selected destination including optional via-points.
Various options to control route computation including manual and automated sorting of via-points.
Automatic re-calculation of the route when leaving the planned route.
Guidance on the display (visual guidance) and voice guidance via the loudspeaker (acoustic guidance). Also announces road names with navigation instructions.
Fast route calculation and re-calculation.
Finds routes 12 times faster than the GARMIN StreetPilot III, see GPS Routing Speed for more information.
World map with zoom function.
Pre-installed detailed map of Europe (City Navigator Europe NT)
Information on the map displayed in 3 levels of details.
Find waypoints, cities and exits.
Extended search function for points of interest, addresses and intersections.
Search based on Google Maps (requires data connection)
Coordinates and elevation above see level of the current location, shows closest address and road crossing, nearby hospitals, police and gas stations.
Current time
Current bearing
Current, average and maximum speed
Trip duration and distance (Odometer)
Supports metric and U.S. units

To table of contents

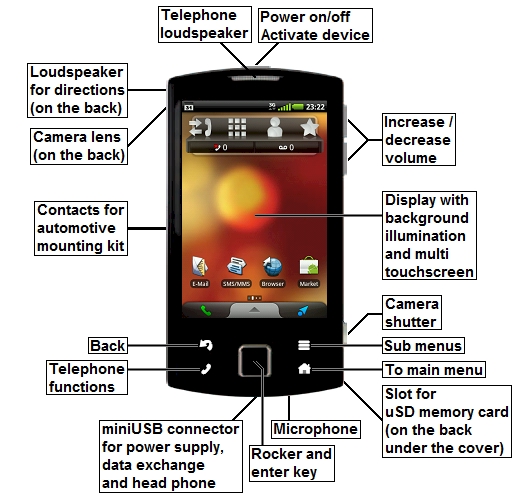

Overview of the GARMIN nüvifone A50:

To table of contents

Main pages of the GARMIN nüvifone A50:

Note: The nüvifone A50 adapts the display to the current orientation of the device: It may show every page either in landscape or portrait format; however, some pages are shown in landscape format only if the device is attached to the car mounting kit. The pictures below show the main menu in in both formats. All further screen shots will be shown in only one format, but they are always available in both formats. You may customize the appearance of the screen to meet your personal needs. The pictures below are just examples, the actual display may differ depending on your settings.

The two images below show the screen in its true resolution (480x320 pixel). However, the size of the pictures depend on the characteristics of your display and may differ from the actual dimensions (75x50 mm). The screen shots below have been reduced in size in order to improve the appearance of this document.

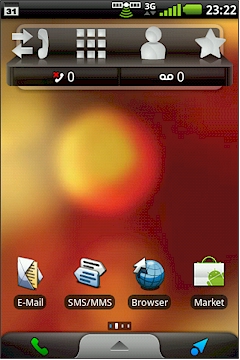

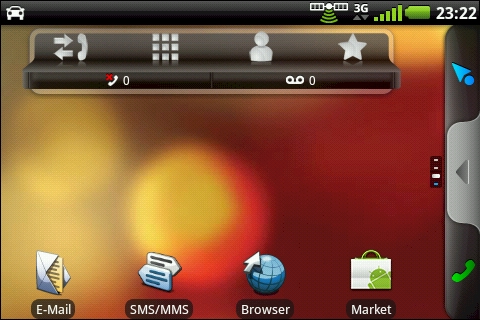

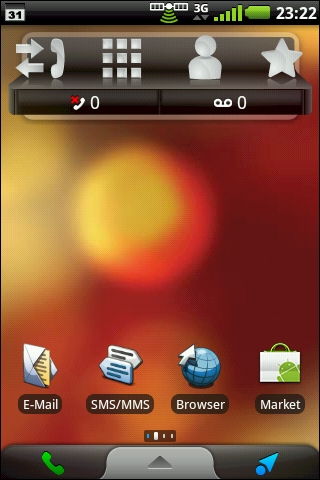

Main menu in Android mode in landscape format	Main menu in Android mode in portrait format

Status bar with mode rsp. appointment reminder, GPS status, mobile phone network type and signal strength, status of the battery and current time Manage phone calls Shortcuts for email, short text and image messages, web browser and Android market To navigation mode (blue arrow) Extras (gray tab) Phone functions (green phone icon)

The Nüvifone A50 supports two different user interfaces: GARMIN and Android. The image below on the left shows the A50 in GARMIN mode, all other images show it in Android mode. The user interface in GARMIN mode is very similar to the user interface of its predecessor Nüvifone G60, see here.

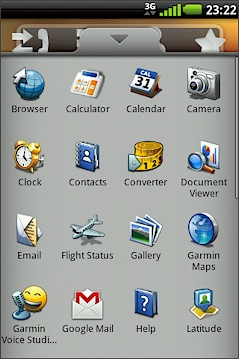

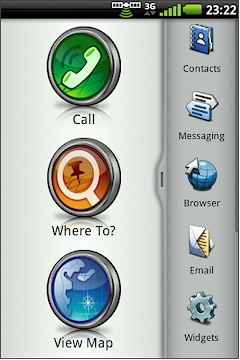

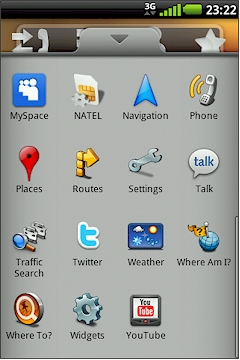

Main Menu in GARMIN mode	Main Menu in Android mode	Extras in Android mode (1 of 2)	Extras in Android mode (1 of 2)

Status bar with GPS status, mobile phone network type and signal strength, status of the battery and current time Manage phone calls and dial numbers Search for locations Display map Manage contacts Manage short text and image messages Web browser (requires a data connection either over WLAN or the mobile phone network) Email (requires a data connection either over WLAN or the mobile phone network) Manage widgets	Status bar with appointment reminder, GPS status, mobile phone network type and signal strength, status of the battery and current time Manage phone calls and dial numbers Email (requires a data connection either over WLAN or the mobile phone network) Manage short text and image messages Web browser (requires a data connection either over WLAN or the mobile phone network) Access to Android Market (requires a data connection either over WLAN or the mobile phone network plus an email account at Google)	Status bar with GPS status, mobile phone network type and signal strength, status of the battery and current time Web browser Calculator with basic operations Calendar with appointments Camera Clock with alarm and stop watch Manage contacts Unit converter Display documents Email Flight status Picture gallery Show map Voice Studio to record your own navigation directions Gmail Help Latitude	Status bar with GPS status, mobile phone network type and signal strength, status of the battery and current time MySpace Subscription settings To navigation Manage phone calls and dial numbers Find local attractions Manage routes Settings Talk Traffic information Twitter Weather forecast Information about current location Find destination Manage widgets YouTube

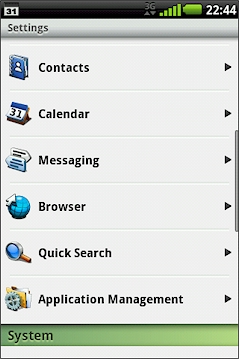

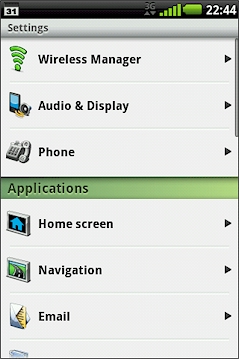

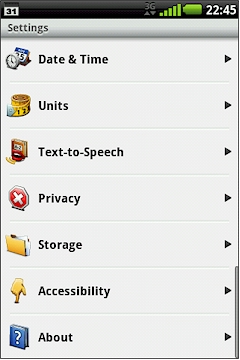

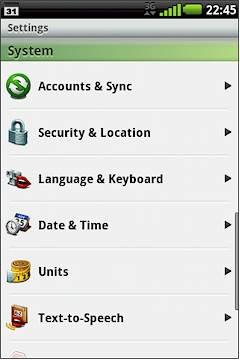

Settings (1 of 4)	Settings (2 of 4)	Settings (3 of 4)	Settings (4 of 4)

Status bar with appointment reminder, mobile phone network type and signal strength, status of the battery and current time Manage wireless connections Manage audio and display settings Manage phone settings Manage main menu Manage navigation settings Manage email settings	Status bar with appointment reminder, mobile phone network type and signal strength, status of the battery and current time Manage contact settings Manage calendar settings Manage short text and image messaging settings Manage browser settings Manage quick search Manage applications	Status bar with appointment reminder, mobile phone network type and signal strength, status of the battery and current time Manage account and synchronization settings Manage security and location settings Manage language and keyboard settings Manage date and time settings Manage units Manage text-to-speech settings	Status bar with appointment reminder, mobile phone network type and signal strength, status of the battery and current time Manage date and time settings Manage units Manage text-to-speech settings Manage privacy settings Manage storage settings Manage accessibility settings Information about the device including firmware version

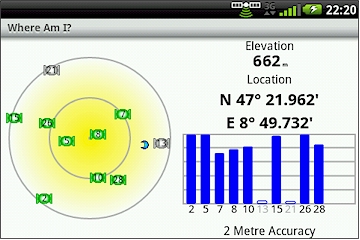

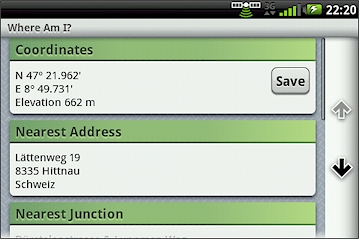

Satellites		Current Position

Status bar with GPS status, mobile phone network type and signal strength, status of the battery and current time Position of the satellites in the sky Current elevation above sea level Coordinates of the current location Strength of the satellites signals Accuracy of position indication		Status bar with GPS status, mobile phone network type and signal strength, status of the battery and current time Coordinates of the current location and elevation above sea level Nearest address Nearest intersection More information

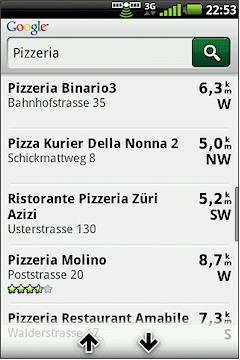

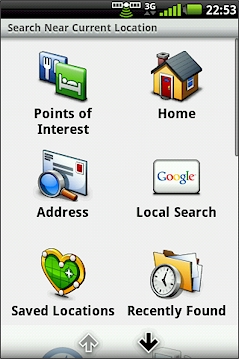

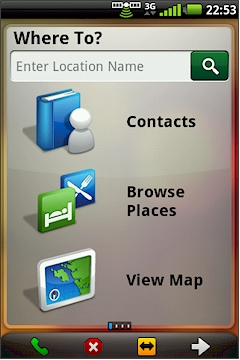

Where To? (1 of 3)	Where To? (2 of 3)	Where To? (3 of 3)

Status bar with GPS status, mobile phone network type and signal strength, status of the battery and current time Free text search in all categories Navigate to a contact Search for final destination or intermediate stop Show map Manage phone calls and dial numbers Stop navigation (only shown if there is an active route) Find detour (only shown if there is an active route) To main menu	Status bar with GPS status, mobile phone network type and signal strength, status of the battery and current time Search for "Points of Interest" (banks, hotels, restaurants, attractions, gas stations etc.) Navigate back home (an address set by the user) Search for an address Search for places in the area using Google (requires a data connection either over WLAN or the mobile phone network) Search for favorites (user defined waypoints) List of recently found locations More search options You may use addresses, points of interest, waypoints a.s.o. either as final destination of your trip or as intermediate stop.	Status bar with GPS status, mobile phone network type and signal strength, status of the battery and current time Entry field for search and start search Results of the local search via Google with distance and heading from the current position (requires a data connection either over WLAN or the mobile phone network) To previous results To next results

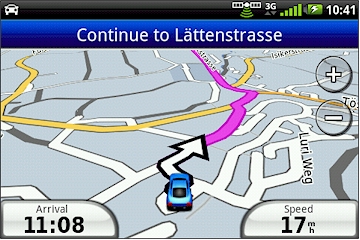

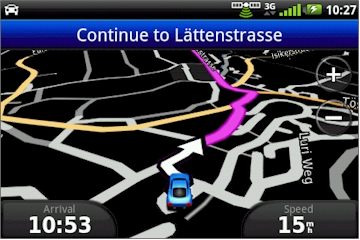

Map (Day Mode)		Map (Night Mode)

Status bar with mode (automotive or pedestrian), GPS status, mobile phone network type and signal strength, status of the battery and current time Direction 3D map in day mode with current location (blue car), planned route (violet) and next turn (white arrow) Change scale Data fields (select value to be shown from list)		Status bar with mode (automotive or pedestrian), GPS status, mobile phone network type and signal strength, status of the battery and current time Direction 3D map in night mode with current location (blue car), planned route (violet) and next turn (white arrow) Change scale Data fields (select value to be shown from list)

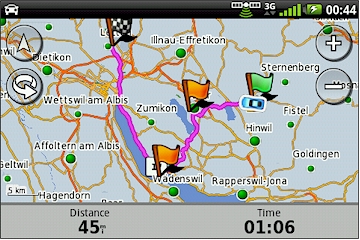

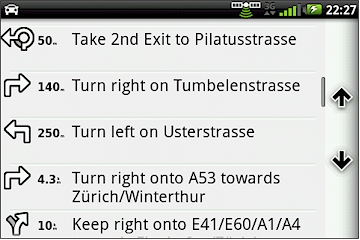

Route		Directions

Status bar with mode (automotive or pedestrian), GPS status, mobile phone network type and signal strength, status of the battery and current time Map with planned route (violet line), current position (blue car), start (green flag), via points (orange flags) and final destination (black and white flag). You may switch the map to 3D view, rotate the map and change the scale. Distance from start to final destination (length of the planned route) Estimated travel time for the whole route		Status bar with mode (automotive or pedestrian), GPS status, mobile phone network type and signal strength, status of the battery and current time Direction with type of turn, distance to turn and name of the road on which you will turn to Display planned route on map (not shown on this image) To previous directions To next directions

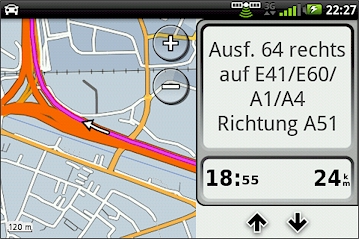

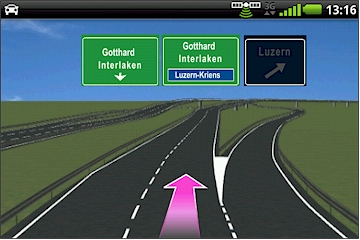

Autozoom		Lane Assistant

Status bar with mode (automotive or pedestrian), GPS status, mobile phone network type and signal strength, status of the battery and current time Highly enlarged part of the map with detailed view of next turn (will be displayed automatically when approaching a turn) Change scale ("-" and "+") Direction regarding this turn Estimated time until you approach this turn Distance to this turn To previous turn To next turn		Status bar with mode (automotive or pedestrian), GPS status, mobile phone network type and signal strength, status of the battery and current time Detailed view of the lanes at the next turn The arrow indicates which lane to take

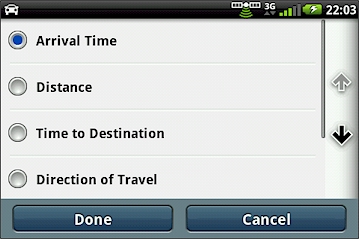

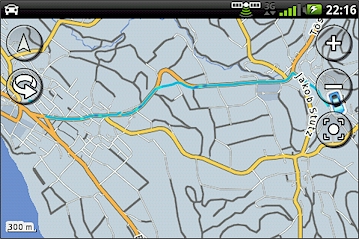

Map Data Field		Travelled Path (Track)

Status bar with mode (automotive or pedestrian), GPS status, mobile phone network type and signal strength, status of the battery and current time Estimated arrival time at final destination Distance to final destination Estimated travel time to final destination Current heading Elevation above sea level (not shown on this image) Current time (not shown on this image) More data fields Der hier ausgewählte Wert wird im Datenfeld der Karte angezeigt.		Status bar with mode (automotive or pedestrian), GPS status, mobile phone network type and signal strength, status of the battery and current time Map with travelled path (track, blue line). You may set the device to show or hide the track on the map. You may switch the map to 3D view, rotate the map and change the scale.

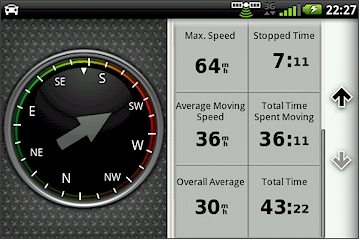

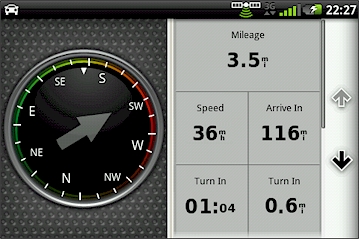

Trip Computer (1 of 2)		Trip Computer (2 of 2)

Status bar with mode (automotive or pedestrian), GPS status, mobile phone network type and signal strength, status of the battery and current time Current heading Travelled distance (odometer) Current speed Distance to destination Time to next turn Distance to next turn To next data fields		Status bar with mode (automotive or pedestrian), GPS status, mobile phone network type and signal strength, status of the battery and current time Current heading Maximum speed Time without moving (stopped time) Average speed (without stopped time) Time moving Overall average speed (including stopped time) Total time (time moving plus stopped time) To previous data fields

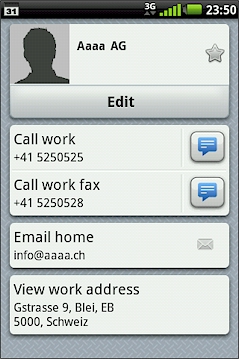

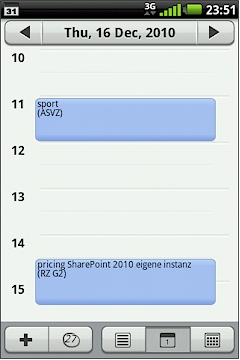

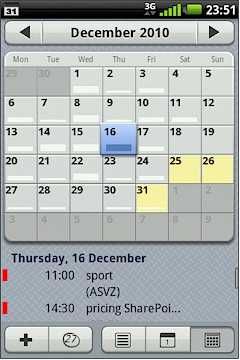

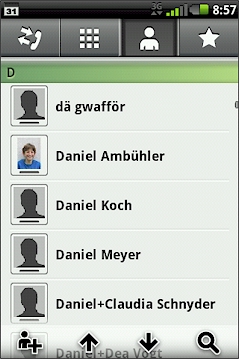

Contacts	Contact	Calender	Appointments

Status bar with appointment reminder, mobile phone network type and signal strength, status of the battery and current time Manage calls Dial number List of contacts Numbers often used List of contacts Add contact To previous contacts To next contacts Search contacts	Status bar with appointment reminder, mobile phone network type and signal strength, status of the battery and current time Name and picture Edit this contact Details about this contact	Status bar with appointment reminder, mobile phone network type and signal strength, status of the battery and current time Calendar in monthly view with appointments Add appointment Go to today Show list of appointments Show daily view Show monthly view	Status bar with appointment reminder, mobile phone network type and signal strength, status of the battery and current time Calendar in daily view with appointments Add appointment Go to today Show list of appointments Show daily view Show monthly view

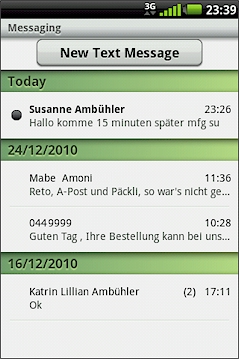

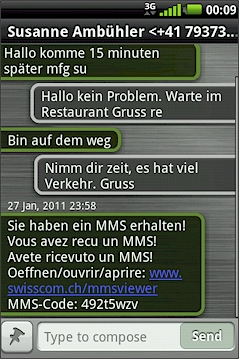

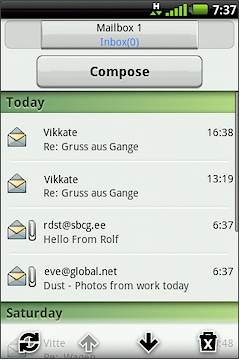

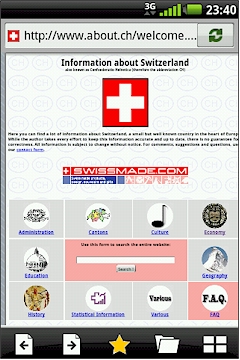

Email - Inbox	Text Messages Overview	Text Message Conversation	Web Browser

Status bar with mobile phone network type and signal strength, status of the battery and current time Inbox with number of new messages Compose new email message Email messages with sender, subject, date and time Check for new messages To previous messages To next messages Delete messages You need a data connection either over WLAN or the mobile phone network to send and receive emails.	Status bar with mobile phone network type and signal strength, status of the battery and current time Compose new text or image message Text messages with sender, date and time plus text You need a connection over the mobile phone network to send and receive text messages.	Status bar with mobile phone network type and signal strength, status of the battery and current time Sender / Receiver Text messages from and to the same phone number are shown as conversations Create and send another message to the person you are having this conversation with You need a data connection over the mobile phone network to send and receive text messages. Text messages may include location information. Locations may be shown on the map if supported by the device such as the nüvifone A50.	Status bar with mobile phone network type and signal strength, status of the battery and current time Web page, use the touch screen to pan the page, touch the screen to follow links, use dual touch (two finger guesture) to zoom in or out To previous page To next page Add current page to favorites Manage favorites Open a new browser window You need a data connection either over WLAN or the mobile phone network to send and receive emails.

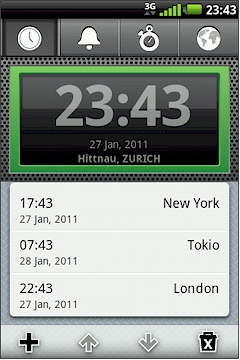

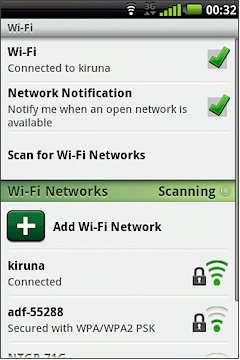

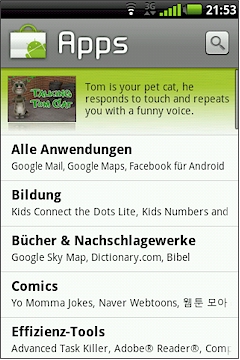

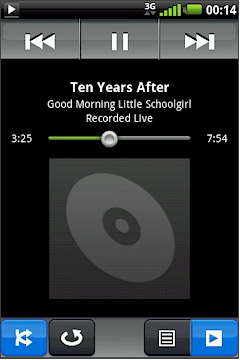

Android Market	MP3 Player	Clock	WLAN

Status bar with WLAN signal strength, mobile phone network type and signal strength, status of the battery and current time Search for apps in the Android Market (requires a data connection either over WLAN or the mobile phone network) List of apps	Status bar with MP3 player status, mobile phone network type and signal strength, status of the battery and current time To previous title Pause / Play To next title Current artist, current title and current record Elapsed time and total time of current title Turn random play on or off Turn repeat on or off List view Cover view	Status bar with mobile phone network type and signal strength, status of the battery and current time Time and date Manage alarms Stop watch with split time Globus with day and night zone Time of day and date at current position and at different places. Touch the name of the city to look up different locations. Add city to list of locations To previous locations To next locations Remove cities from the list	Status bar with WLAN signal strength, mobile phone network type and signal strength, status of the battery and current time Turn WLAN on or off Turn notifications about new WLAN networks on or off Search for WLAN networks Add WLAN network to the list of known networks List of WLAN networks with name, status, encryption and signal strength

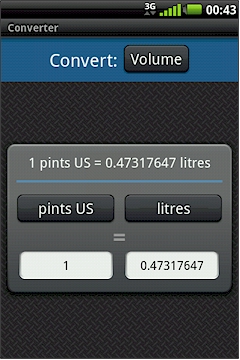

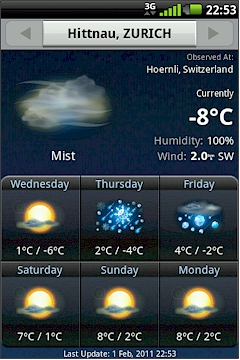

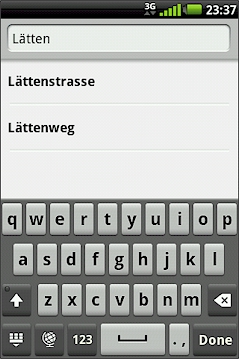

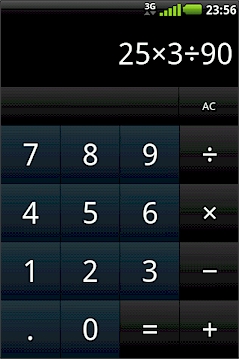

Weather	Calculator	Converter	Text Entry

Status bar with mobile phone network type and signal strength, status of the battery and current time Weather conditions at current or selected location Weather forecast for the next 6 days at current or selected location Requires a data connection either over WLAN or the mobile phone network.	Status bar with mobile phone network type and signal strength, status of the battery and current time Display calculation / result Keyboard	Status bar with mobile phone network type and signal strength, status of the battery and current time Type of convertion: Distance, area, volume, speed, weight, temperature or currency (get actual exchange rate on-line, requires a data connection either over WLAN or the mobile phone network) Units Values	Status bar with mobile phone network type and signal strength, status of the battery and current time Entry field Suggestions Keyboard Hide keyboard Select language Special characters Done: End text entry

To table of contents

Price:

This model has been discontinued; however, you can still order options for the nüvifone A50.

To table of contents

Options:

Headset with microphone(one such headset comes with the nüvifone A50)	CHF 22	\|	EUR 21	[Picture and details]
Mounting kit with suction cup including adhesive disk to be fixed on the dashboard (Does not include mounting bracket)	CHF 20	\|	EUR 19	[Picture and details]
Adjustable mounting kit with suction cup including adhesive disk to be fixed on the dashboard (does not include mounting bracket)	CHF 27	\|	EUR 26	[Picture and details]
Portable friction mount (new design; does not include unit mount)	CHF 35	\|	EUR 33	[Picture and details]
Power supply without USB cable	CHF 17	\|	EUR 16	[Picture and details]
USB cable for data exchange with PC and power supply (one such USB cable comes with the nüvifone A50)	CHF 14	\|	EUR 13	[Picture and details]
4.0 GB micro SDHC memory card including µSD to SD adapter	CHF 9	\|	EUR 9	[Picture and details]
8.0 GB micro SDHC memory card including µSD to SD adapter	CHF 16	\|	EUR 15	[Picture and details]
16.0 GB micro SDHC memory card including µSD to SD adapter	CHF 19	\|	EUR 18	[Picture and details]

All options for the GARMIN nüvifone A50 in detail.

MapSource, various µSD memory cards, DVDs and CDroms with topographic and street maps (products on DVD or CDrom require a computer and a cable for data exchange).

To table of contents

Downloads:

Quick start manuals, owner's manuals and firmware upgrade for GARMIN nüvifone A50:

Quick start manuals:

English (974 kB)

Owner's manuals:

English (3.8 MB)

Firmware Upgrade:

There are currently no firmware upgrades available

If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.

To table of contents

Order:

To order options for GARMIN nüvifone A50 please:

Click on the price or the shopping basket symbol to add the item you wish to purchase to the shopping basket. Your browser must accept cookies, otherwise the shopping basket won't work.
If the shopping basket does not work, please use this form.

Please read our terms and conditions.
