| GARMIN Overlander |
| The Overlander supports the Russian GLONASS and the European Galileo satellites |
Very rugged all-terrain GPS device for navigation on the road and off-road, with 7 inch color display, GLONASS and Galileo support, integrated pitch and roll gauges, electronic 3D compass, barometrical altimeter, integrated base map, pre-installed street map of all of Europe, Middle East and Africa including Tracks4Africa, slot for µSD memory card, Blue Tooth, Wi-Fi and USB interface.
The GARMIN Overlander is equipped with an integrated base map, pre-installed street maps of all of Europe, Middle East and Africa including Tracks4Africa and supports autorouting. Campground directories of ACSI, Campercontact, Trailer's Park and iOverlander are also pre-installed. Use the Garmin Explorer app to download additional maps and satellite imageries and to synchronize waypoints, tracks and routes with your smartphone or computer. The Overlander is equipped with built-in pitch and roll gauges, an electronic 3D compass (3D = tilt-compensated compass which means the device doesn't have to be held level for accurate reading of the heading), a barometrical altimeter, 56.2 GB of memory - of which 35.6 GB are free - plus a slot for an µSD memory card. It can communicate via Blue Tooth and Wi-Fi, has an microUSB connector, a 3.5 mm audio connector, supports optional wireless backup cameras and can be paired with Explorer devices to send emergency messages. The Overlander provides detailed graphical and spoken directions and supports voice-activated navigation, which means you can operate the device with spoken commands. The built-in battery lasts for up to 3 hours, in cars it can be powered from a cigarette lighter. This device cannot only receive the signals of the U.S. GPS satellites, but also of the Russian GLONASS and the European Galileo satellites. This provides improved accuracy of the position indication, particularly under difficult conditions such as in cities with tall buildings, in narrow valleys, near steep cliffs and in dense forests. Android-based operating system, but does not support installation of additional apps from the Google Play store.
Contents: Features - Overview - Main Pages - Maps - Price - Options - Downloads - Order
Features:
- Very robust and weatherproof (dust rating IP5X, drop rating MIK-STD-810).
- Brilliant, large, easy to read color display with background illumination (65536 colors, 1024x600 pixel), supports landscape and portrait mode.
- Easy to use through touchscreen and user friendly, graphical interface.
- Multilingual user interface in Africaans, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Farsi (Persian), Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Spanish, Swedish and Turkish.
- Voice guidance in Africaans, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, English (American, Australian, British, Indian), Flemish, French (European, Canadian), Finnish, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Luxembourgish, Norwegian, Polish, Portuguese (Brazilian, European), Romanian, Russian, Serbian, Slovak, Slovenian, Spanish (American, European), Swedish and Turkish. This GPS device has no built-in loudspeaker. In order to use voice guidance, an optional car mounting kit with an built-in speaker or a headphone is required.
- Integrated GPS receiver with very sensitive built-in antenna, processes the signals of the U.S. GPS satellites, the Russian GLONASS satellites and the European Galileo satellites.
- Integrated base map with countries of all continents including major cities.
- Pre-installed street map of all of Europe, Middle East and Africa including Tracks4Africa.
- 56.2 GB built-in memory, of which the pre-installed maps occupy about 20.6 GB, leaving about 35.6 GB available for use. The Overlander is also equipped with a slot for a standard micro SD memory card ("TransFlash"). Memory cards are available as an option.
- Pitch and roll gauges show the vehicles angles, provide notifications and/or alarms at configurable angles.
- Electronic 3D compass to check heading while not moving¹, accuracy ±5°, resolution ±1°. "3D" means tilt-compensated compass which does not require the device to be level for accurate readings.
- Barometrical altimeter for precise elevation recording².
- Powered by rechargeable battery or by an external 12 V power source, e.g. from a car's cigarette lighter (power cord included). Rechargeable battery lasts about 3 h.
- Short time to first fix (TTFF³: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available).
- Firmware stored in Flash-Memory, can be updated by the user.
- Operating temperatures -20 .. 55°C (-4° .. 131°F).
- Highspeed USB interface, USB cable for data exchange with PC included.
- Dimensions: 199x122x24 mm (7.84x4.79x0.93 inches).
- Weight: 440 g (15.4 ounces).
- ¹) In order to check the heading with a GPS, a minimal movement with a speed of at least 5..8 km/h (3..5 mi/h) is required. Where no movement is not possible, a compass is needed.
- ²) Even though a GPS provides accurate elevation information, the value slightly varies continuously. A barometrical altimeter is therefore more accurate, especially when summarizing elevation changes.
- ³) TTFF: Time To First Fix, time until the first information about the current position is acquired.
Information for navigation:
- Stores up to 1'000 waypoints with name, icon, phone number and category.
- Information on the map displayed in 3 levels of details.
- Search for cities, addresses, points of interest - such as gas stations, restaurants, attractions, recreation, shopping, banks and ATMs, medical care, transportation etc., favorites, campgrounds and more.
- Bearing (electronic compass).
- Current position (longitude, latitude, altitude).
- Altitude via air pressure (barometer).
- Current accuracy of the position information.
- Current time.
- Current bearing.
- Current, average and maximum speed.
- Trip duration and distance (Odometer).
- Records the travelled path (track.
- Supports metric and U.S. units.
 |
To table of contents |

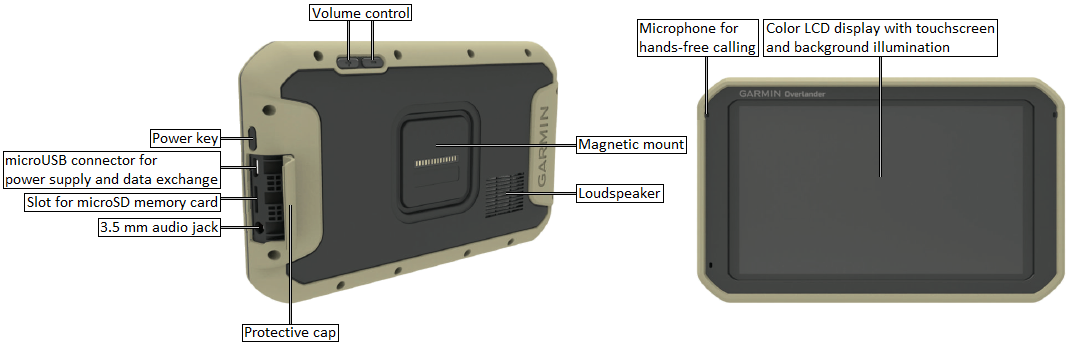

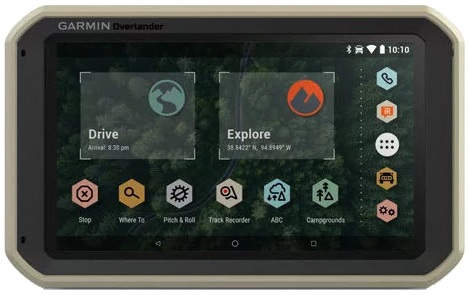

GARMIN Overlander overview:
|
To table of contents |
Main pages of the Overlander:
The image below shows the display of the Overlander in true resolution (1024x600 pixels). This does not necessarily mean that the display is shown it its true size (152x89 mm). The actual size of this image depends on the properties of your display. All following images have been reduced to improve the appearance of this document. Many of the pages are configurable, the pictures shown are just examples. All pages are available in portrait and landscape mode.

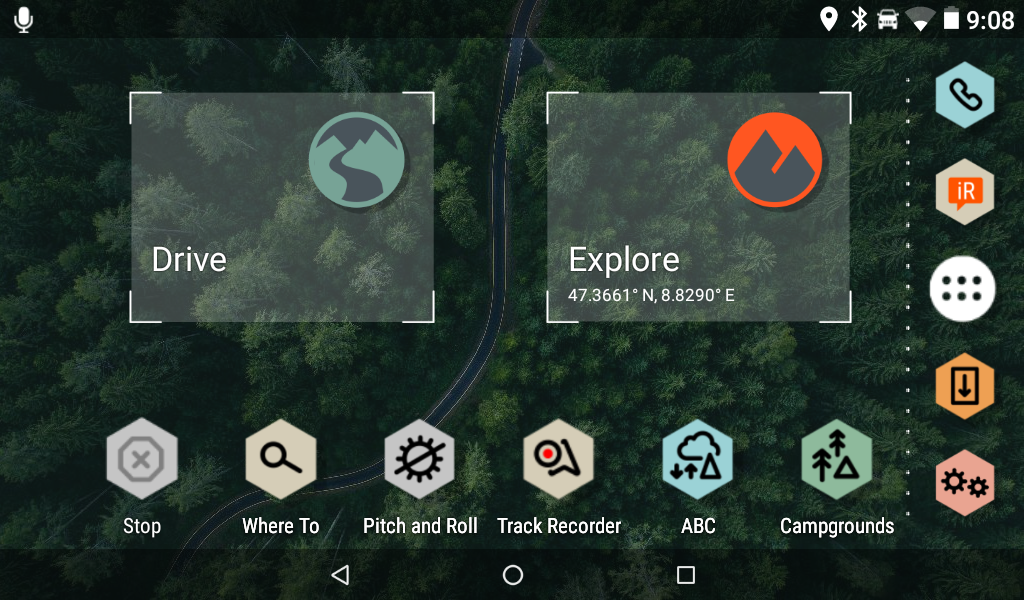

| Main Menu |
 |
|

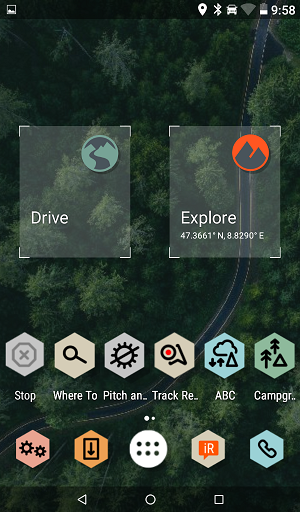

| Landscape Mode | Portrait Mode |
 |
 |

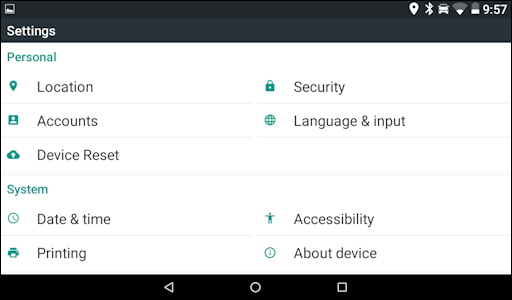

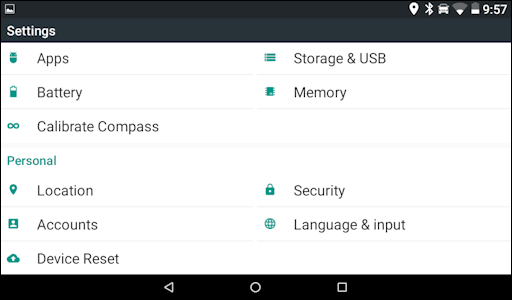

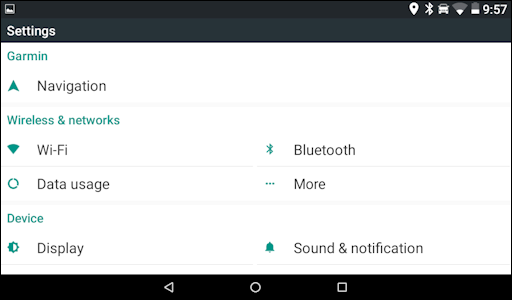

| Settings (1 of 3) | Settings (2 of 3) | Settings (3 of 3) |
 |
 |
 |
|
|
|

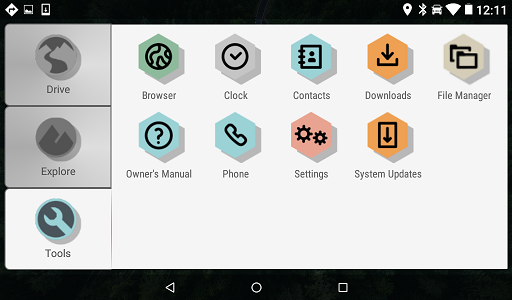

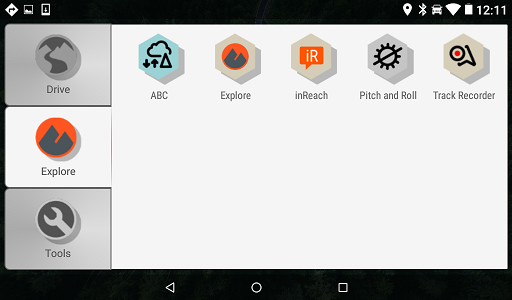

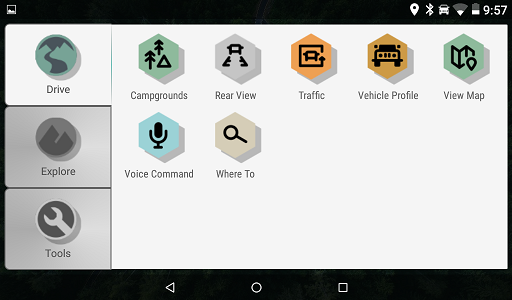

| Drive Apps | Explore Apps | Tools Apps |
 |
 |
 |
|
|
|
| Traffic Messages | Traffic Message Details | Web Browser |
 |
 |
 |
|

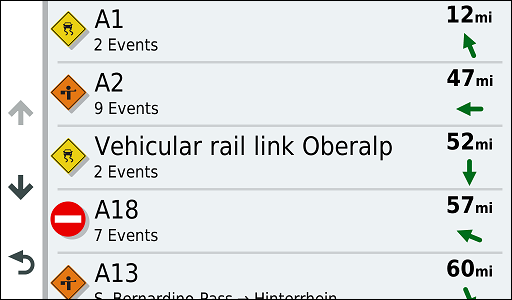

Traffic messages with type of incident, street name, number of incidents and distance from the current position to the location of the incident. |

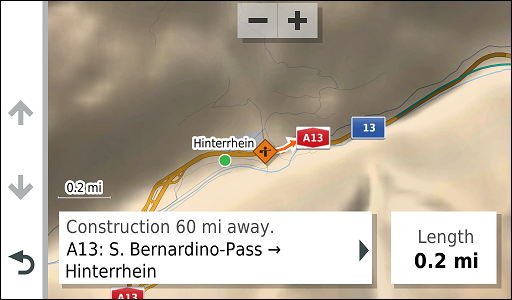

Detailed description of the traffic incident with map and length of the affected section. |

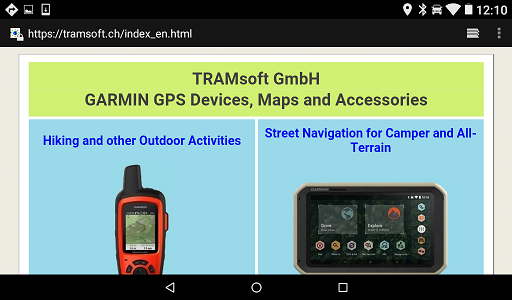

Web-Browser - requires an active WiFi connection. |

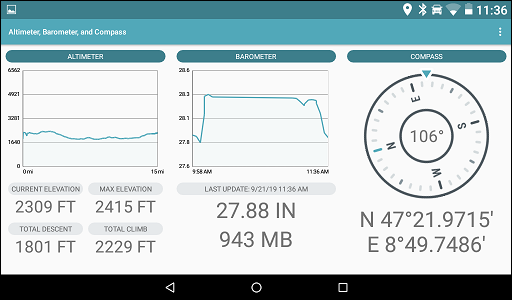

| Pitch and Roll | Track Recorder | ABC - Altitude, Barometer, Compass |
 |
 |
 |
|

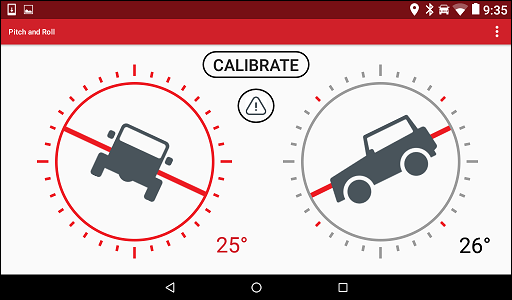

Shows the current pitch and roll angles of the vehicle. The Overlander can alert optically and audible if configurable angles are exceeded. The warning angles must be set in advance and the device must be kept in the same relative position to the vehicle all the time. |

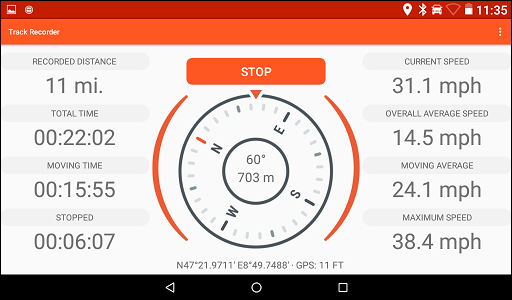

Track Recorder with current bearing, elevation above sea level, coordinates, GPS accuracy and various data about the current trip. Use the Start-/Stop-button to start and stop track recording. |
|

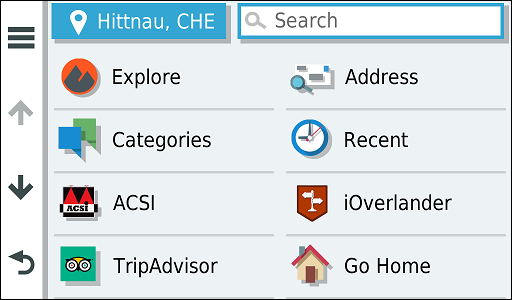

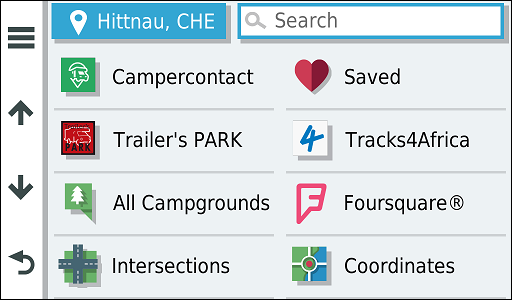

| Where To (1 of 2) | Where To (2 of 2) | Search Example |
 |
 |
 |
|
|

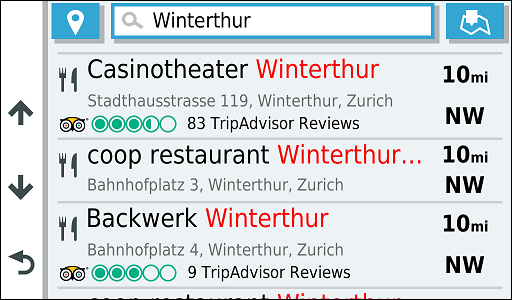

Example: Search for restaurants in Winterthur |

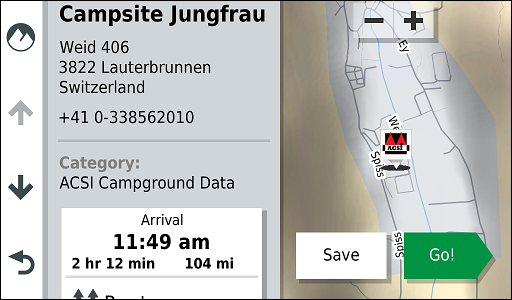

| Routes | Detailed Information about the Destination | Route - Elevation Profile |
 |
 |
 |
|

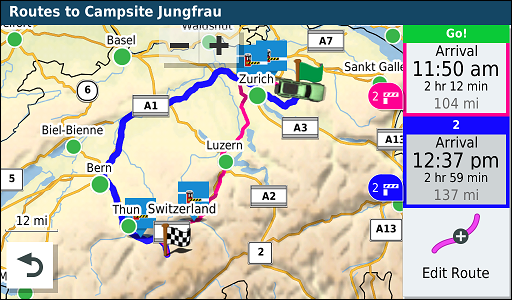

Depending on the distance and the available roads, the Overlander may suggest more than one route. It lists the estimated arrivale time, the estimated travel time and the distance of the different routes with the option to edit any of the routes. |
|

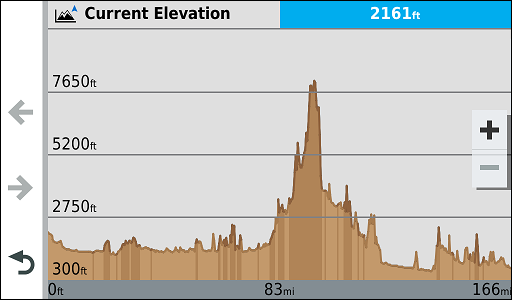

Elevation profile of a planned route |

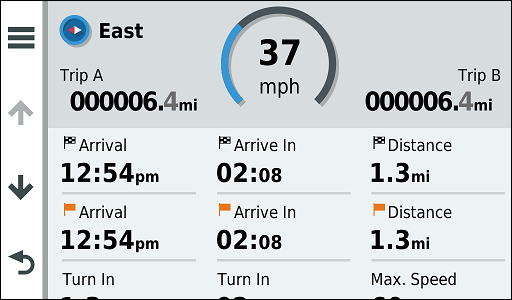

| Drive - Route | Explore - Route | Trip Computer |
 |
 |
 |

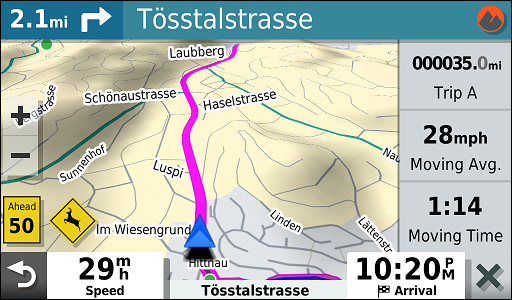

(This picture was taken with the pre-installed street map of Europe) |

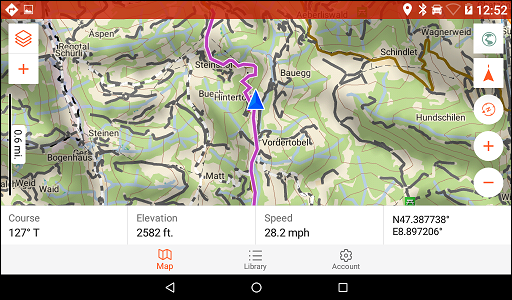

(This picture was taken with the pre-installed Explore map) |
|
|
To table of contents |
Maps:
The followings maps are pre-installed on the GARMIN Overlander:
- City Navigator Europe
- City Navigator North Africa
- City Navigator East & West Africa
- City Navigator Southern Africa
- City Navigator Middle East & North Africa
If you connect the Overlander to a computer using an USB cable, you can use the maps on the computer as well if the free software GARMIN BaseCamp is installed. When you connect the Overlander to a computer for the first time, then the maps will be transfered to the computer. After that, the maps will be ready immediately. However, you must connect the Overlander each time in order to get access to the maps.
Note: Click on the map images for a larger picture.
City Navigator Europe:
| Coverage Europe North | Coverage Europe South | Zürich and vicinity |
 |
 |
 |
|

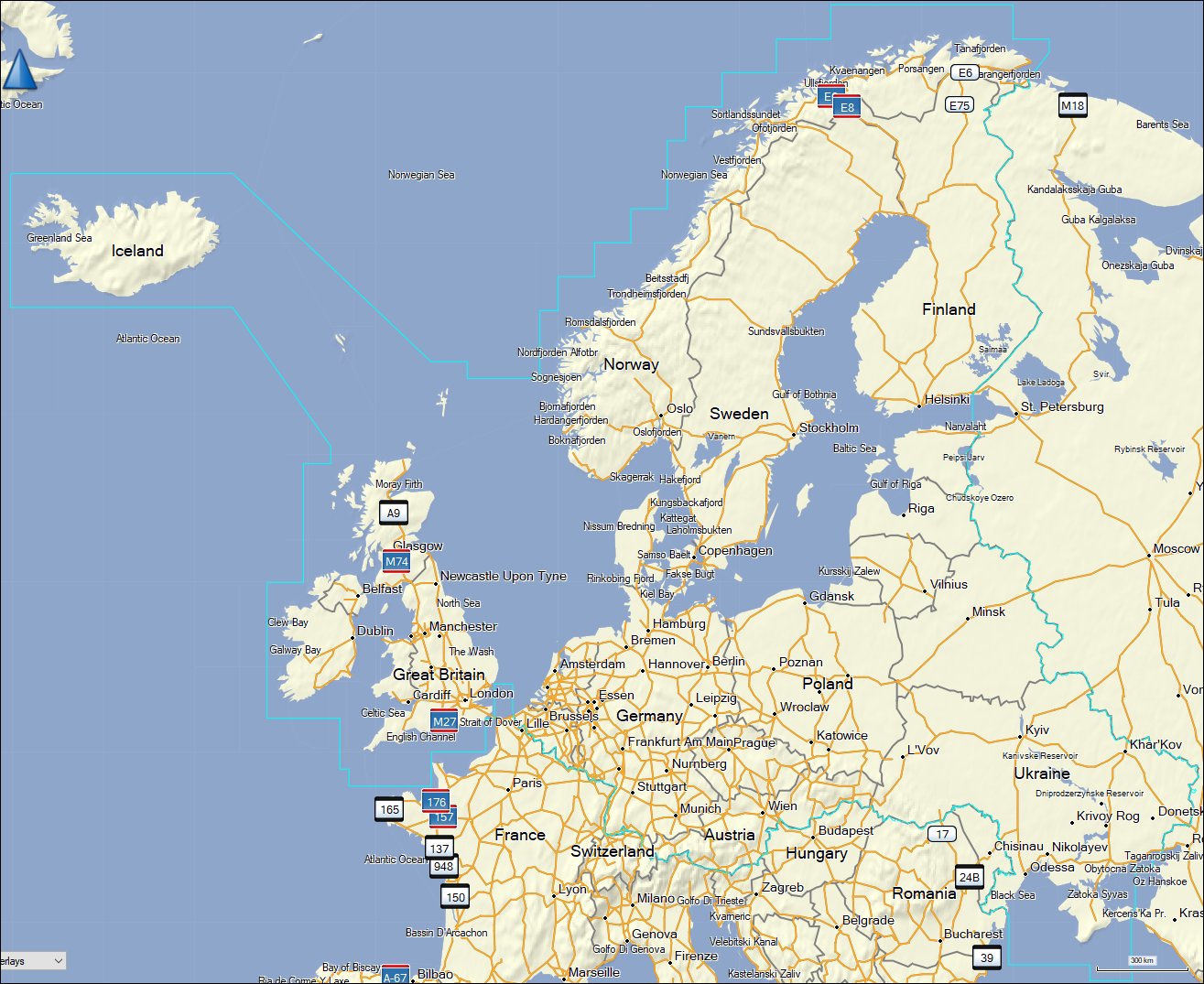

Austria, Belarus, Belgium, Czech Republic, Denmark, Estonia, Finland, Germany, Great Britain, Iceland, Ireland, Latvia, Lithuania, Luxembourg, Netherlands, Northen Irleand, Norway, Poland, Slovakia, Sweden, Ukraine (This image was taken with BaseCamp) |

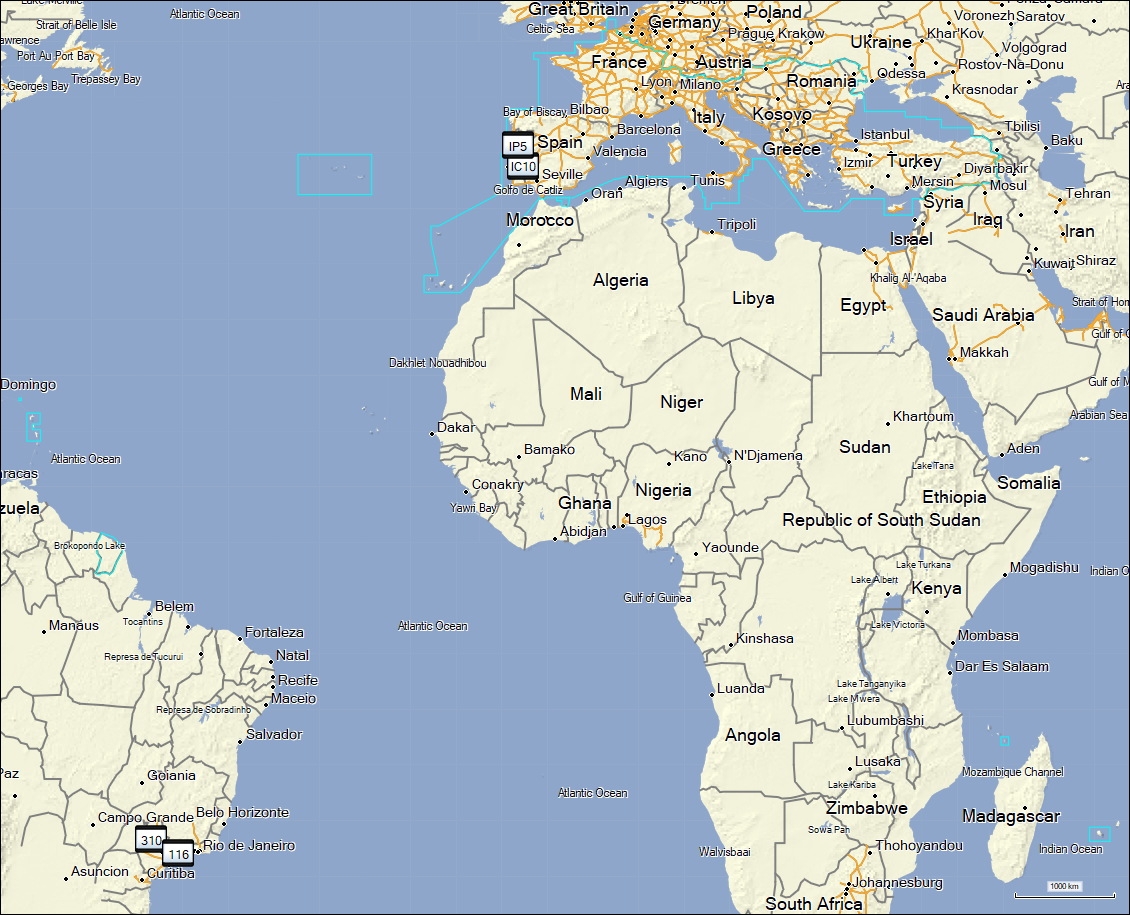

Albania, Bosnia and Herzegovina, Bulgaria, Croatia, France including La Reunion and Mayotte in the Indian Ocean, Guadeloupe and Martinique in the Caribbean plus French Guayana, Greece, Hungary, Italy, Kosovo, Macedonia, Moldova, Montenegro, Portugal including Azores, Romania, Serbia, Slovenia, Spain including Canarian Islands, Switzerland, Turkey (This image was taken with BaseCamp) |

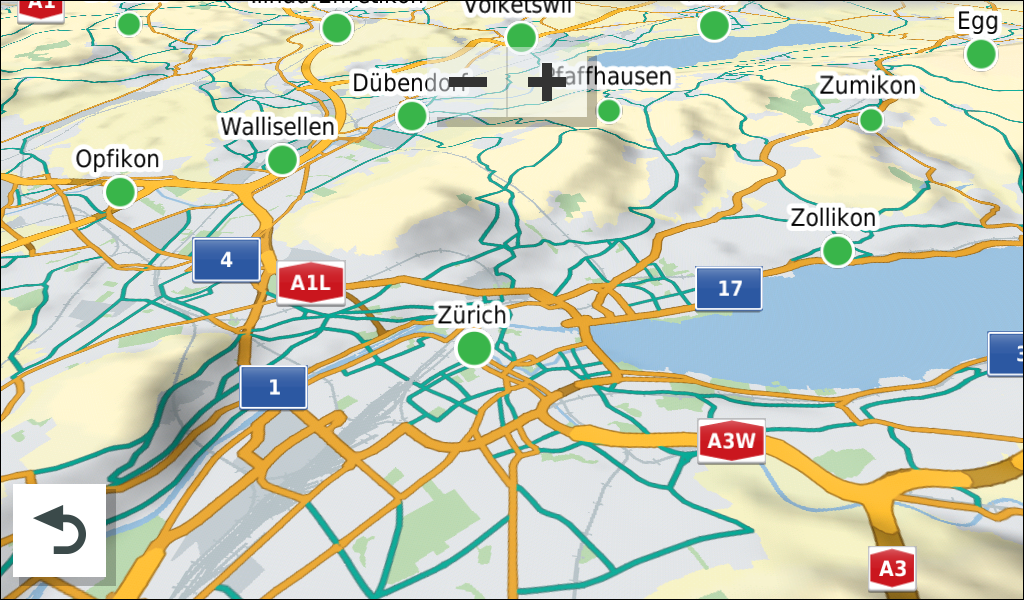

Example City Navigator Europa: Zürich and vicinity (This image was taken with the Overlander) |
City Navigator North Africa:
| Coverage | Marocco | Tripoli and vicinity |
 |
 |
 |
|

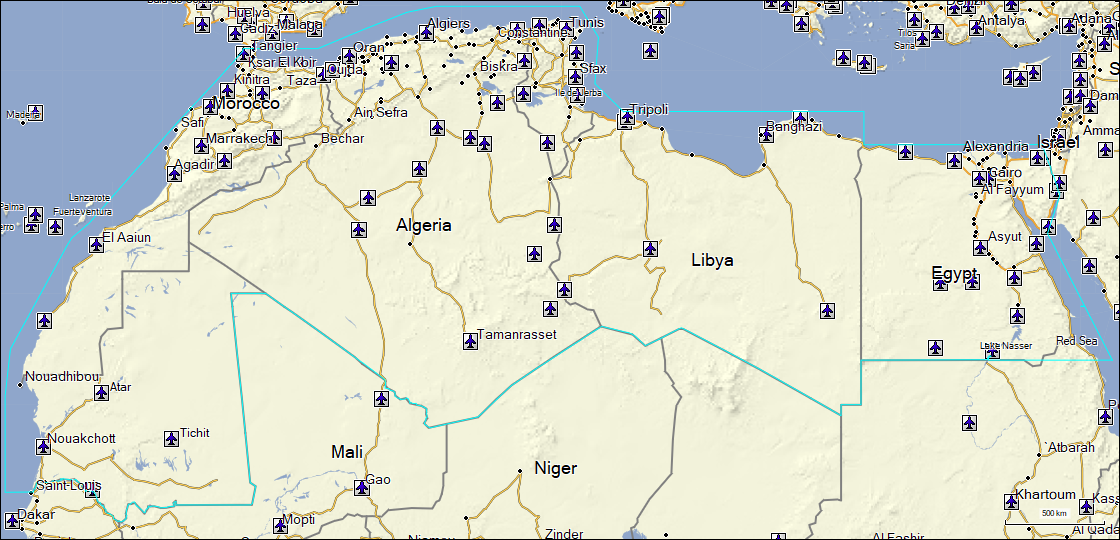

Algeria, Egypt, Libya, Marocco, Mauretania, Western Sahara (This image was taken with BaseCamp) |

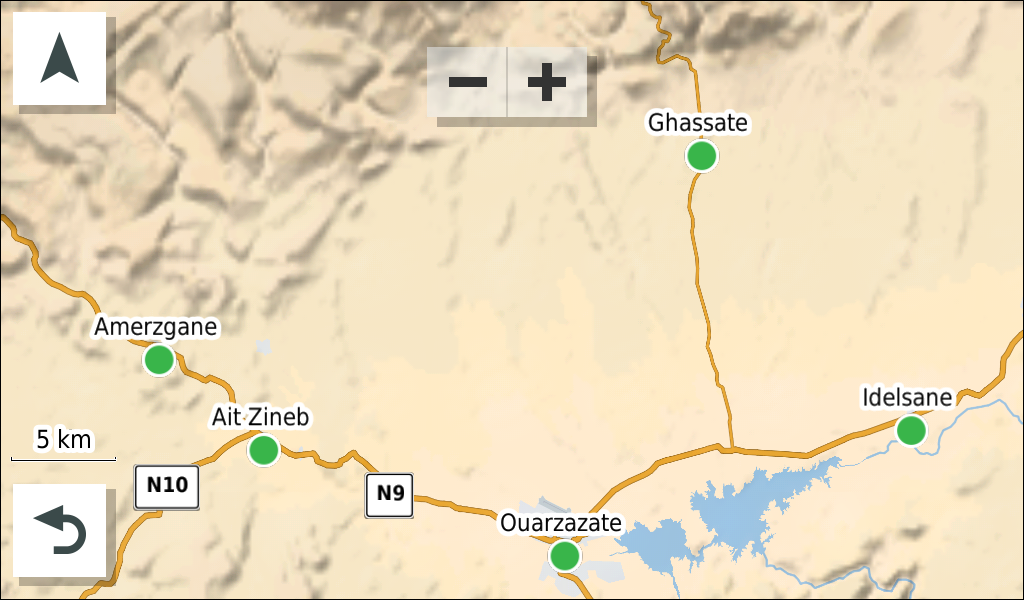

Example City Navigator North Africa: Marocco (This image was taken with the Overlander) |

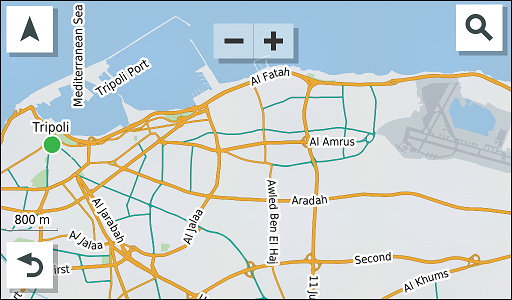

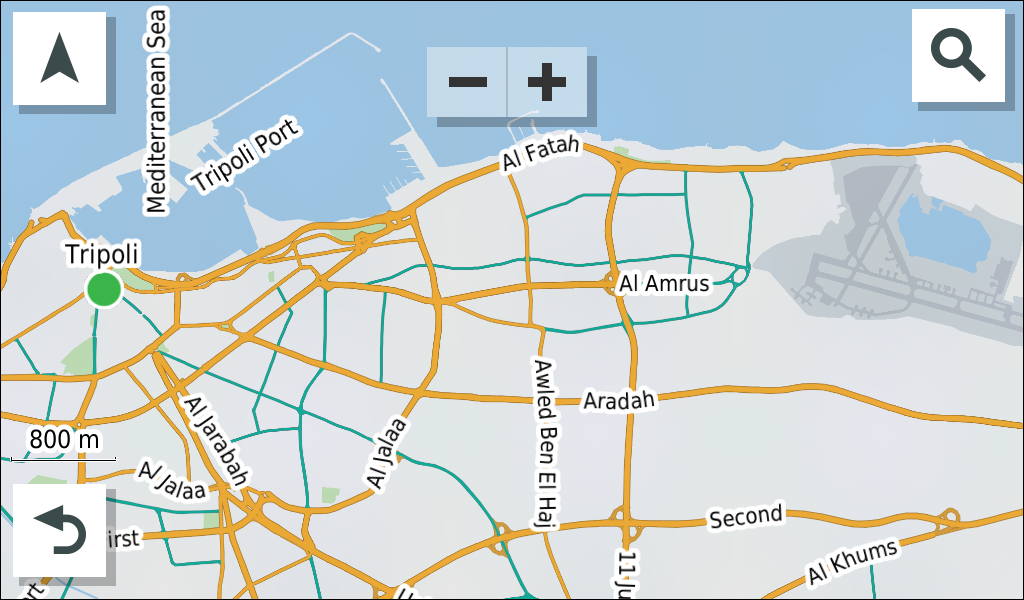

Example City Navigator North Africa: Tripoli and vicinity (This image was taken with the Overlander) |
City Navigator East and West Africa:
| Coverage | Parc National de la Marahoué and vicinity | Nairobi |
 |
 |
 |
|

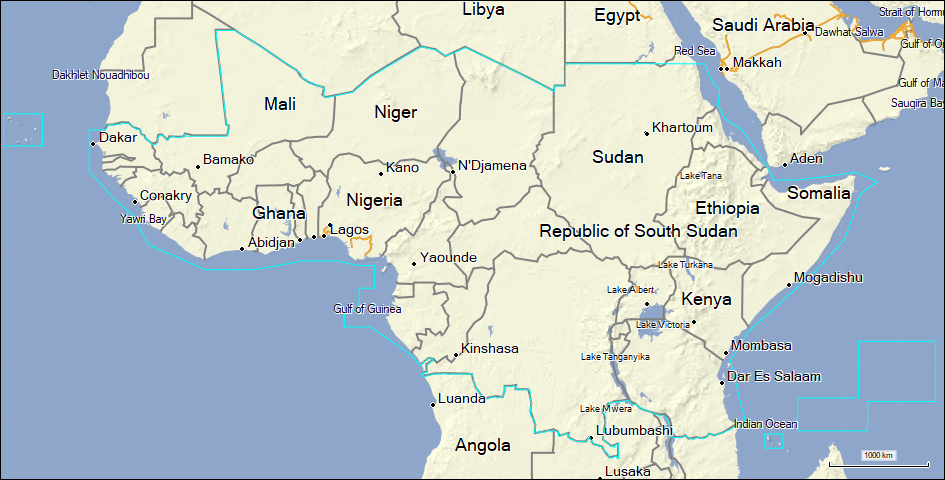

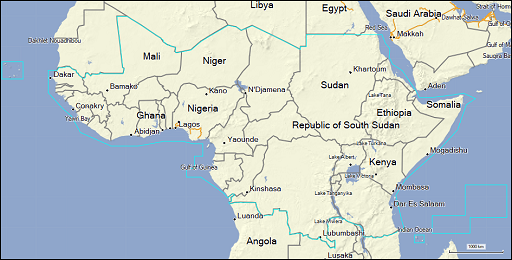

Benin, Burkina Faso, Cameroon, Cape Verde, Chad, Comoros, Congo, Djibouti, Equatorial Guinea, Eritrea, Ethiopia, Gabon, Gambia, Ghana, Guinea, Guinea-Bissau, Ivory Coast, Kenya, Liberia, Mali, Niger, Nigeria, Republic Congo, Ruanda, Senegal, Seychellen, Sierra Leone, Somalia, Sudan, Tansania, Togo, and Uganda (This image was taken with BaseCamp) |

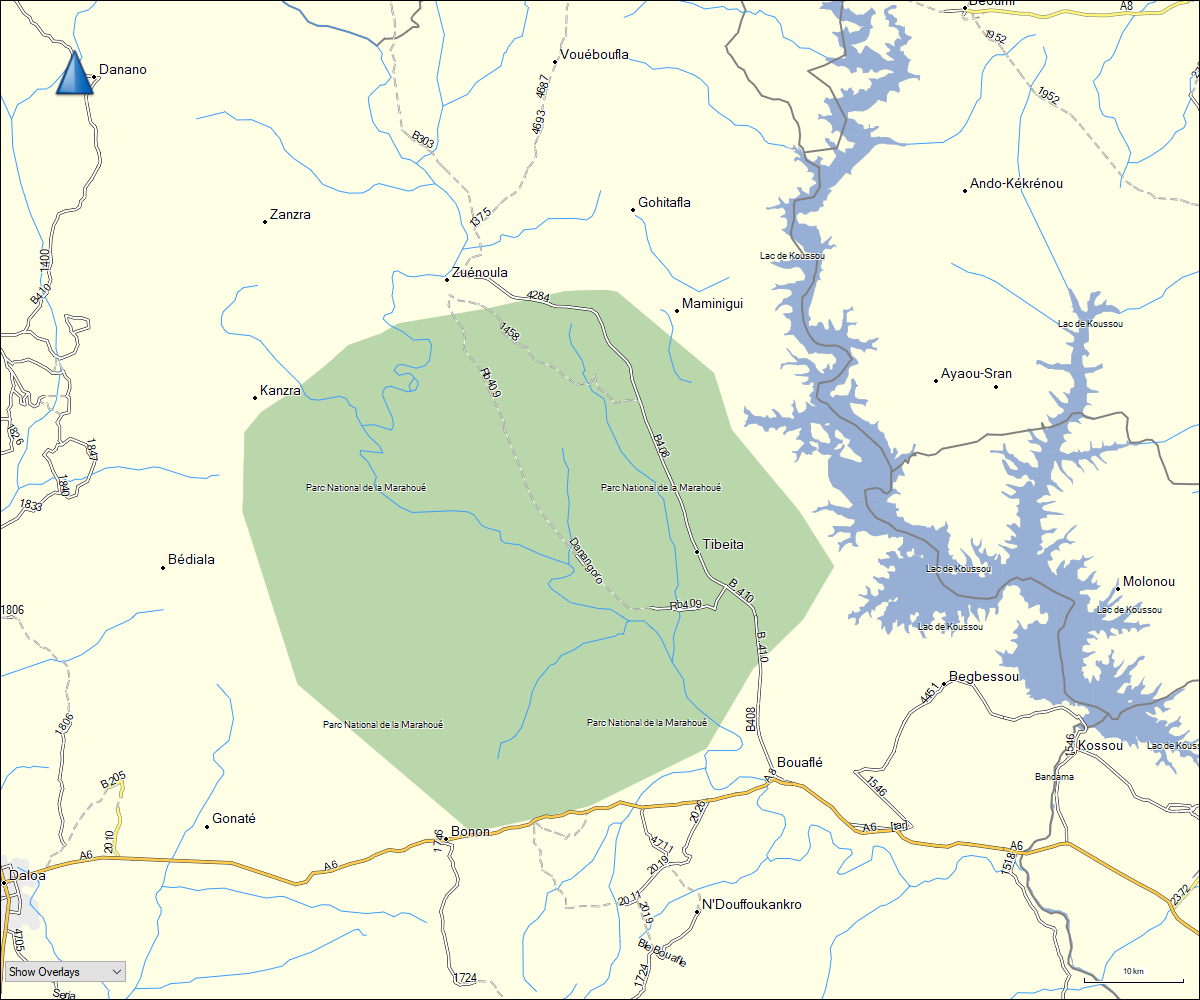

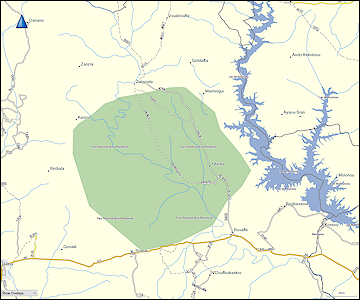

Example City Navigator East and West Africa: Parc National de la Marahoué and vicinity (This image was taken with BaseCamp) |

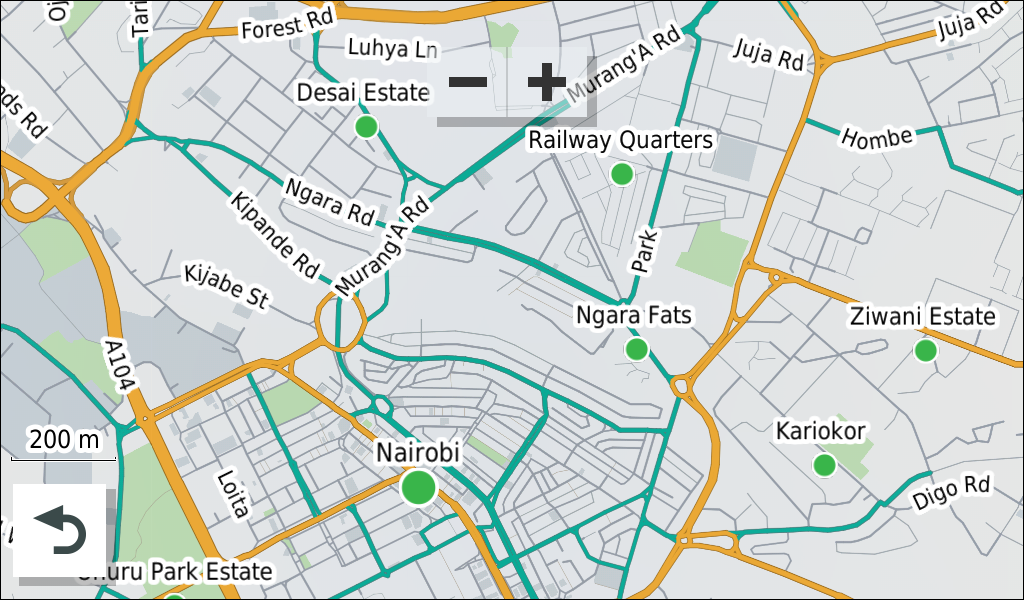

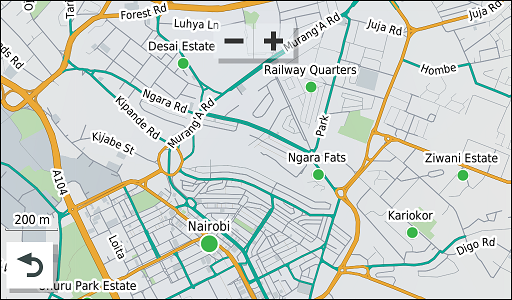

Example City Navigator East and West Africa: Nairobi (This image was taken with the Overlander) |
City Navigator southern Africa:
| Coverage | Madagascar | Kapstadt |
 |
 |
 |
|

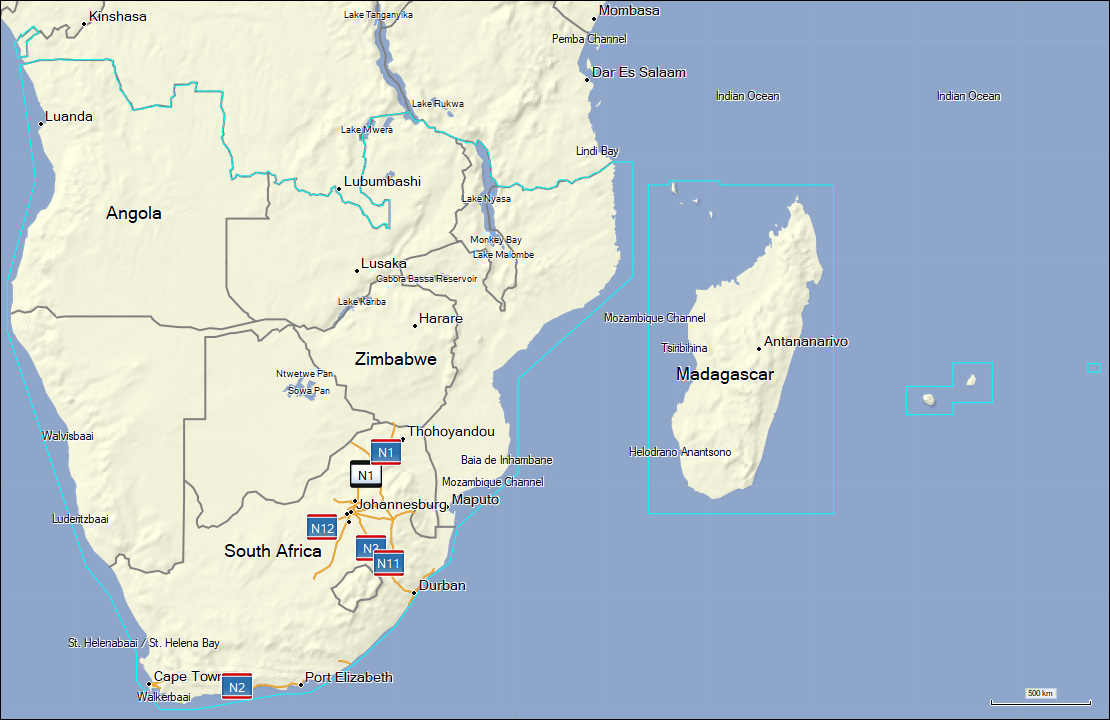

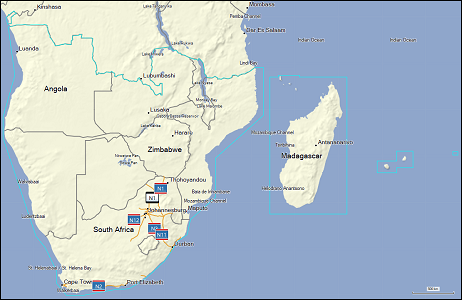

Angola, Botswana, Comoros, Lesotho, Madagascar, Malawi, Mauritius, Mozambique, Namibia, Réunion, South Africa, Swaziland, Zambia, and Zimbabwe (This image was taken with BaseCamp) |

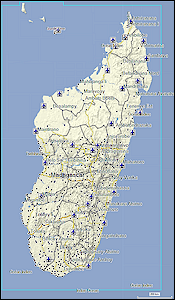

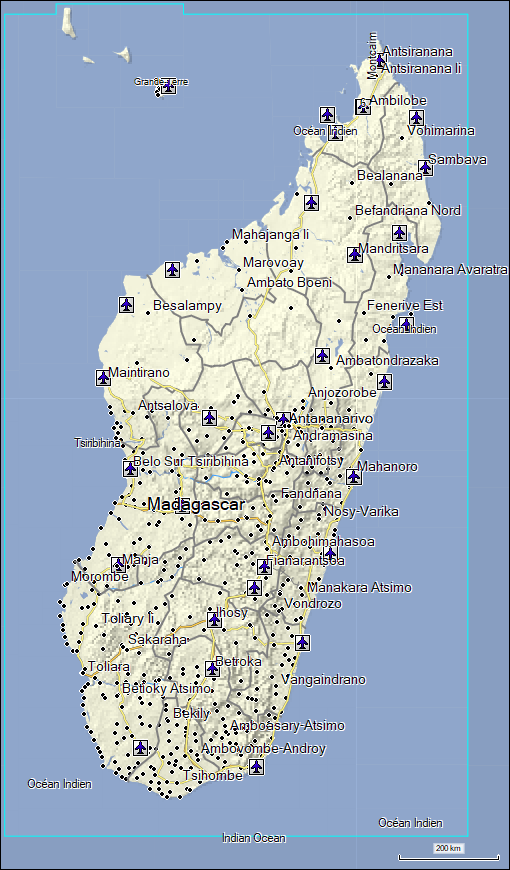

Example City Navigator southern Africa: Madagascar (This image was taken with BaseCamp) |

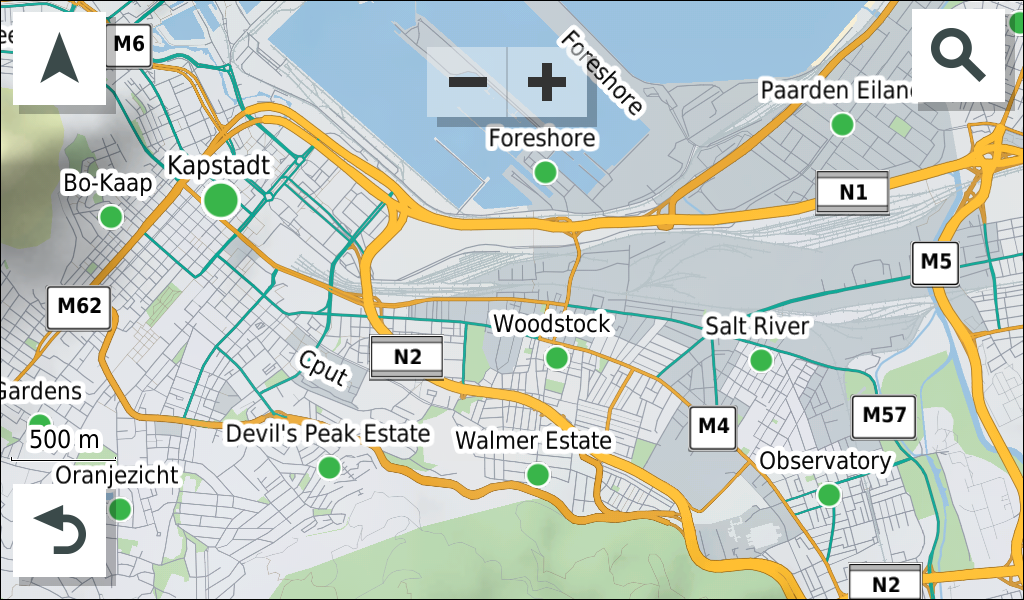

Example City Navigator southern Africa: Kapstadt (This image was taken with the Overlander) |
City Navigator Middle East:
| Coverage | Dubai | Bahrain |
 |
 |
 |
|

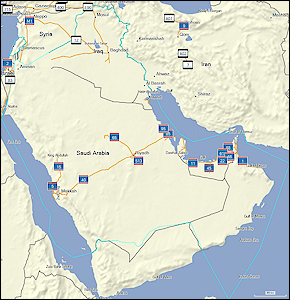

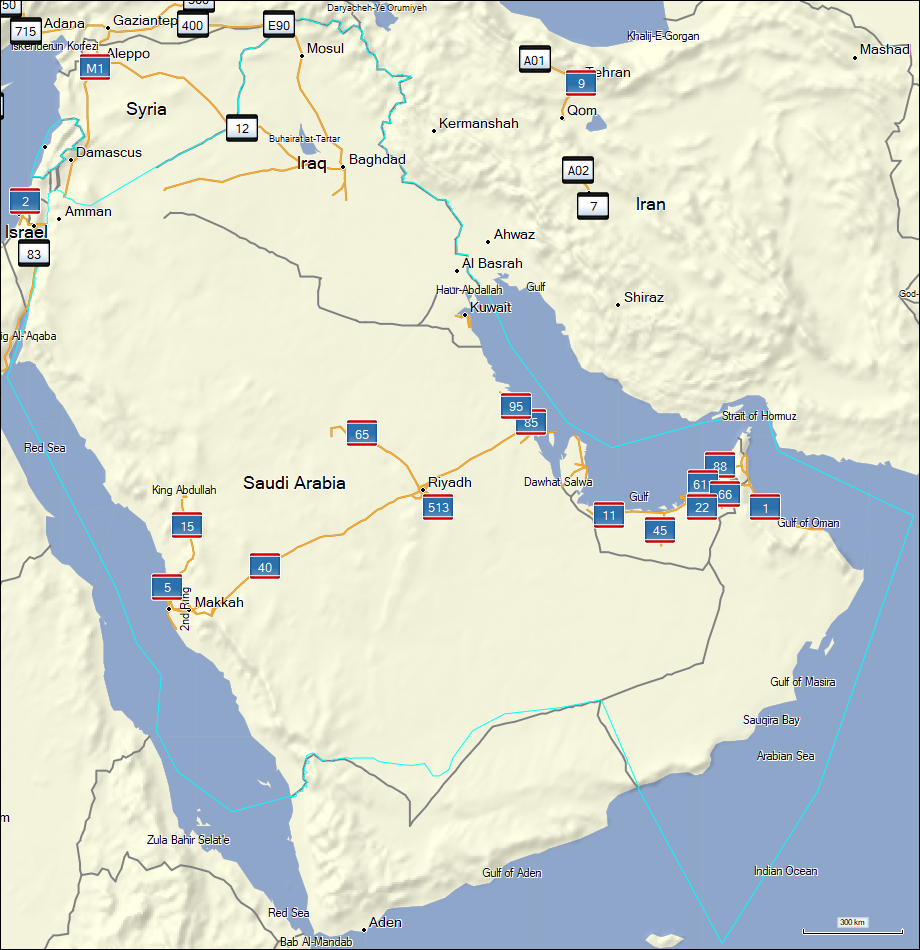

Iraq, Jordania, Kuwait, Lebanon, Oman, Qatar, Saudi Arabia, United Arabian Emirates (This image was taken with BaseCamp) |

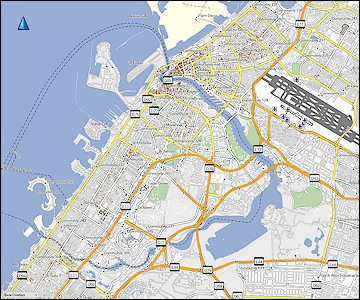

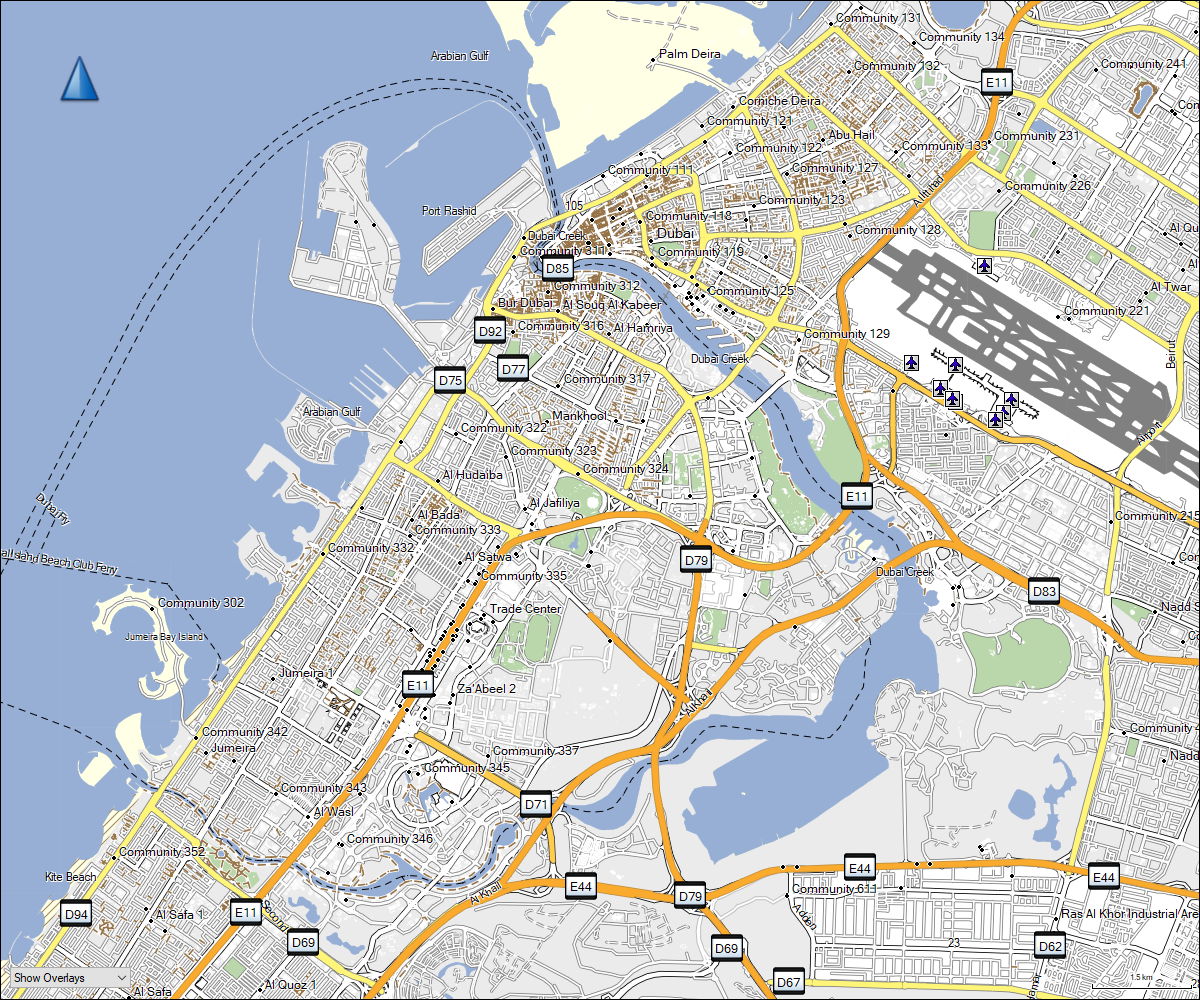

Example City Navigator Middle East: Dubai (This image was taken with BaseCamp) |

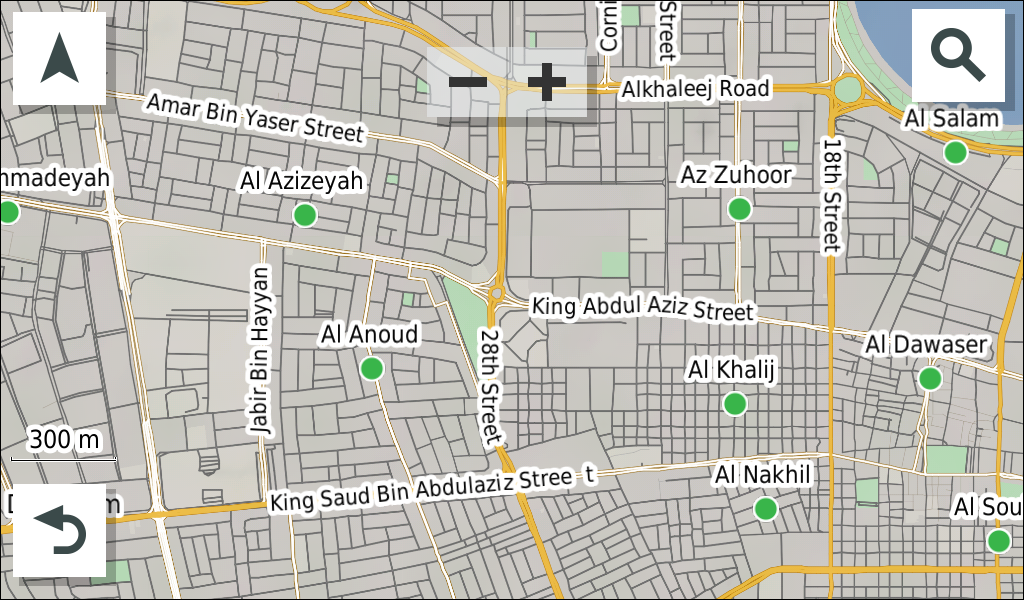

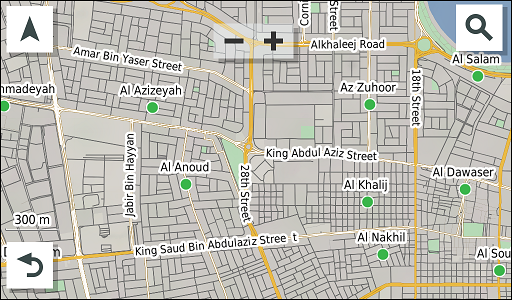

Example City Navigator Middle East: Bahrain (This image was taken with the Overlander) |
|
To table of contents |
Price:
| GARMIN Overlander |  |
CHF 758 | |
the package includes the following items:
|
|||
|
To table of contents |
Options:
| Mounting kit with extra large suction cup (Does not include mounting bracket) |
|
CHF 20 | [Picture and details] | |
| Dashboard discs | |
CHF 23 | [Picture and details] | |
| Power supply without USB cable | |
CHF 17 | [Picture and details] | |
| 12 USB charger | |
CHF 29 | [Picture and details] | |
| USB cable with miniUSB plug, fits the connector of the car mount | |
CHF 14 | [Picture and details] | |
| USB cable with microUSB plug, fits the connector of unit (one such USB cable comes with the Overlander) |
|
CHF 17 | [Picture and details] | |
| 4.0 GB micro SDHC memory card including µSD to SD adapter | |
CHF 9 | [Picture and details] | |
| 8.0 GB micro SDHC memory card including µSD to SD adapter | |
CHF 16 | [Picture and details] | |
| 16.0 GB micro SDHC memory card including µSD to SD adapter | |
CHF 19 | [Picture and details] | |
| 32.0 GB micro SDHC memory card including µSD to SD adapter | |
CHF 21 | [Picture and details] |
All options for the GARMIN Overlander in detail.
MapSource, various µSD memory cards, DVDs and CDroms with topographic and street maps (products on DVD or CDrom require a computer and a cable for data exchange).
|
To table of contents |
Downloads:
Here we provide additional documentation and software updates:
- Owner's manual (as PDF):
- Firmware Upgrade V4.40 (Use GARMIN Express or connect to WiFi to install this version)
- List of changes made with Firmware Upgrades
 |
If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free. |
|
To table of contents |
Order:
To order the GARMIN Overlander as well as options please:
- Click on the price or the shopping basket symbol to add the item you wish to purchase to the shopping basket. Your browser must accept cookies, otherwise the shopping basket won't work.
- If the shopping basket does not work, please use this form.
Please read our terms and conditions.
|
To table of contents |
