The models of the GPSMAP 66 series support the U.S. GPS and the European GALILEO satellites, the models GPSMAP 66s and 66st support also the Russian GLONASS satellites. The model GPSMAP 66sr supports all three systems simultaneously.

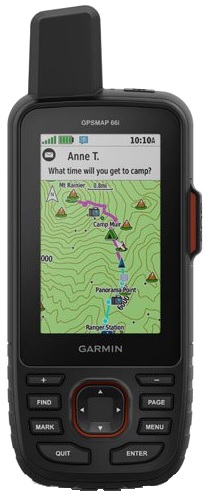

The GPSMAP 66i supports sending and receiving short messages and triggering an interactive emergency call to GEOS via Iridium satellites from every location worldwide.

Rugged hand held GPS devices with large color display, integrated base map, auto-routing, slot for uSD memory card, high-speed USB interface, electronic compass, barometrical altimeter, support for WiFi and wireless communication with compatible devices. The GPSMAP 66st/66sr/66i come furthermore with pre-installed maps TopoActive Europe. All models support the U.S. GPS and the European GALILEO satellites, the models GPSMAP 66s and 66st support also the Russian GLONASS satellites. The model GPSMAP 66sr supports GPS, GLONASS and GALILEO simultaneously (Multi-Band). The GPSMAP 66i is capable of sending and receiving short messages and triggering interactive emergency calls to GEOS via Iridium satellites from every location worldwide without the need of a mobile network (inReach subscription required).

The devices of the GARMIN GPSMAP 66 series are very easy to use thanks to their keys, user friendly graphical interface and support for multiple languages. These devices can not only receive the signals of the U.S. GPS satellites, but also those of the European GALILEO and the Russian GLONASS satellites (no GLONASS support on the 66i). This provides improved accuracy of the position indication, particularly under difficult conditions such as in cities with tall buildings, in narrow valleys, near steep cliffs and in dense forests. This is especially helpful when searching for geocaches. The model GPSMAP 66sr can process the signals of all 3 systems simultaneously, which improves the accuracy of the position indication even further. They consume little power, one set of batteries lasts up to one week in expedition mode on the GPSMAP 66s/66st (two standard AA batteries). The GPSMAP 66sr and 66i have a built-in, rechargeable battery which lasts for up to 200 hours on the GPSMAP 66i, rsp. up to 450 hours on the GPSMAP 66sr. All models come with a pre-installed world-wide base map. They provide 15 GB rsp. 9 GB free built-in memory to store even more detailed information, such as local roads, restaurants, public buildings and other points of interest. They are equipped with a high-speed USB interface, a tilt-compensated electronic compass, a barometrical altimeter, can receive data from an optional heart rate monitor, an optional speed/cadence sensor, an optional temperature sensor etc., can communicate via WiFi, exchange information wireless with compatible devices and they are equipped with a slot for an optional uSD memory card.
The GPSMAP 66st, GPSMAP 66sr and GPSMAP 66i come with pre-installed maps TopoActive Europe which support auto-routing. The extremely sensitive antenna provides navigation information outdoors, in cars, in trains or even in airplanes (see MapSource examples).

Contents: Series - Features - Overview - Main Pages - Prices - Options - Downloads - Order

GARMIN GPSMAP 66 series:

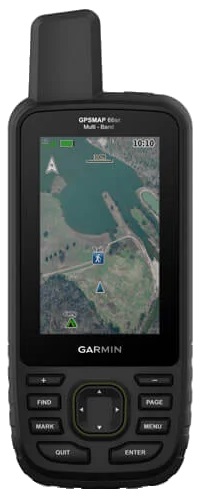

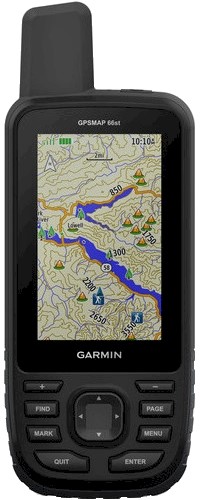

All models provide generally the same functions. However, the GPSMAP 66st, GPSMAP 66sr and the GPSMAP 66i come with TopoActive Europe installed and the GPSMAP 66i does not support GLONASS but can additionally communicate via Iridium satellites and send emergency calls to GEOS:

Feature / Model	GARMIN GPSMAP 66s	GARMIN GPSMAP 66st	GARMIN GPSMAP 66sr	GARMIN GPSMAP 66i

Available built-in memory	16 GB	16 GB¹	16 GB¹	16 GB¹
Slot for optional uSD memory card	YES	YES	YES	YES
Barometrical altimeter	YES	YES	YES	YES
Electronic compass	YES (3D²)	YES (3D²)	YES (3D²)	YES (3D²)
Interface	High-speed USB	Highspeed USB	Highspeed USB	Highspeed USB
Wireless data exchange	YES	YES	YES	YES
Pre-installed maps	Base map	Base map plus TopoActive Europe	Base map plus TopoActive Europe	Base map plus TopoActive Europe
Receive data from optional ANT sensors	YES	YES	YES	YES
GPS modes	GPS, GPS+GLONASS, GPS+GALILEO	GPS, GPS+GLONASS, GPS+GALILEO	GPS+GLONASS+GALILEO	GPS, GPS+GALILEO
Short messages and emergency calls (SOS feature)	-	-	-	YES
Powered by	2x AA batteries	2x AA batteries	internal lithium-ion battery	internal lithium-ion battery
Battery life	Standard mode: up to 16h Expedition mode: up to 170h	Standard mode: up to 16h Expedition mode: up to 170h	Standard mode: up to 36h (10-minute tracking) Expedition mode: up to 450h (30-minute tracking)	Standard mode: up to 35h (10-minute tracking) Expedition mode: up to 200h (30-minute tracking)
Price	from CHF 448	discontinued	discontinued	from CHF 748

¹) The pre-installed maps TopoActive Europe occupy approx. 6 GB of the built-in 16 GB, leaving about 9 GB for user data and other maps.
²) Tilt-compensated compass, does not require to hold the device level for accurate readings.

To table of contents

Features:

Portable, easy to use, robust, waterproof to IPX-7 standard (withstands 30 minutes under water up to 1 meter (3 feet) deep)
Large, easy to read color display with background illumination (65536 colors, 240x400 pixel)
Easy to use thanks to its rocker key, push buttons and user friendly, graphical interface
Multilingual user interface in Bulgarian, Croatian, Czech, Danish, Dutch, English, Farsi (Persian), Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovak, Slovenian, Spanish, Swedish and Turkish
Integrated GPS receiver with very sensitive built-in antenna, processes the signals of the U.S. GPS satellites, the Russian GLONASS satellites and the European GALILEO satellites. However, the different models support different combinations of the satellite systems:
- GPSMAP 66s/st: GPS, GPS+GLONASS and GPS+GALILEO
- GPSMAP 66sr: GPS and GPS+GLONASS+GALILEO (GNSS Multi-Band)
- GPSMAP 66i: GPS and GPS+GALILEO
GPSMAP 66i only: Send and receive short messages and trigger interactive emergency calls to GEOS via Iridium satellites from every location worldwide (inReach subscription required), see www.geosalliance.com.
Integrated base map with countries of all continents including major cities
Memory to transfer additional, more detailed maps with roads, crossings and addresses of restaurants, public buildings, points of interest etc. from a PC to the GPS:
- GPSMAP 66s: 16 GB built-in memory plus slot for standard micro SD memory card ("TransFlash"). Memory cards are available as an option.
- GPSMAP 66st/sr/i: 16 GB built-in memory plus slot for standard micro SD memory card ("TransFlash"). The pre-installed maps TopoActive Europe occupy approx. 6 GB, leaving about 9 GB for user data and other maps (about 1 GB is used by other data). Memory cards are available as an option.
Electronic 3D compass to check heading while not moving¹, accuracy ±5°, resolution ±1°, can be turned off to safe power. "3D" means tilt-compensated compass which does not require the device to be level for accurate readings.
Barometrical altimeter for precise elevation recording²
Powered by:
- GPSMAP 66s/66st: Batteries (2x AA, last up to 16 h, 170 h in expedition mode) or by an external 12 V power source, e.g. from a car's cigarette lighter (power cord available as an option).
- GPSMAP 66sr: Built-in, rechargeable lithium-ion battery (lasts up to 36 h, 450 h in power save mode) or by an external 12 V power source, e.g. from a car's cigarette lighter (power cord available as an option).
- GPSMAP 66i: Built-in, rechargeable lithium-ion battery (lasts up to 35 h, 200 h in power save mode) or by an external 12 V power source, e.g. from a car's cigarette lighter (power cord available as an option).
Expedition mode for ultra long operation. The display is turned off and less trackpoints will be recorded in this mode, allowing the device to be in operation for up to one week with only one set of batteries on the GPSMAP 66s and 66st. One battery charge lasts for up to 200 hours on the GPSMAP 66i, rsp. up to 450 hours on the GPSMAP 66sr.
Short time to first fix (TTFF³: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available)
Supports the following protocols for data exchange with PC: GARMIN Spanner, GARMIN serial, NMEA-Input/Output, Text, MTP
Supports WAAS (improves accuracy of position indication from typical 5..10 m (15..30 feet) to typical better than 3 m (10 feet)) near coasts
Supports more than 100 different datum (coordinate systems)
Supports various display formats include the Swiss Grid
Firmware stored in Flash-Memory, can be updated by the user
Operating temperatures -20 .. 45°C (-4° .. 113°F)
High-speed USB interface with microUSB connector, USB cable for data exchange with PC included
Dimensions: 62x163x35 mm (2.5x6.4x1.4 inches)
Weight: 230 g (8.1 ounces, including batteries

¹) In order to check the heading with a GPS, a minimal movement with a speed of at least 5..8 km/h (3..5 mi/h) is required. Where no movement is not possible, a compass is needed.
²) Even though a GPS provides accurate elevation information, the value slightly varies continuously. A barometrical altimeter is therefore more accurate, especially when summarizing elevation changes.
³) TTFF: Time To First Fix, time until the first information about the current position is acquired.

Information for navigation:

Stores up to 10000 waypoints with name (up to 30 characters), icon (choice of way over 100 symbols) notes, coordinates, elevation and depth
Stores up to 250 reversible routes.
Map with zoom function in the range of 800 km to 5 m (500 mi to 20 ft)
Information on the map displayed in 5 levels of details
Support for ActiveRouting cartography - route calculation for various types of activities such as hiking or biking. TopoActive Europe is already installed on the GPSMAP 66st/sr/i, other maps are available as an option, see www.garmin.com/de/topo/activerouting (in German).
Find waypoints, cities and points of interest, such as restaurants, pump stations, hotels and much more. Requires a map that supports these features, see MapSource.
Bearing (electronic compass)
Current position (longitude, latitude, altitude)
Altitude via air pressure (barometer)
Current accuracy of the position information
Current time
Current heading
Current, average and maximum speed
Trip duration and distance (Odometer)
Records the travelled path (track), capacity 20'000 track points
Stores 250 travelled routes (tracks)
Supports metric, nautical and U.S. units

Additional features:

Air pressure trend (can take pressure readings every 15 minutes even while power is off)
Calendar
Alarm clock
Stop watch
Calculator
Area calculation
Time of sunrise and sunset, moonrise and moonset, current phase of the moon, constellation sun-earth-moon
Information for hunters and fishers
Weather forecast (requires a WiFi connection)
BirdsEye (requires a WiFi connection to download satellite imagery, no subscription required)
Heart rate, requires optional heart rate monitor
Cadence of the crank arms, requires optional speed and cadence sensor
Temperature, requires optional temperature sensor
Support for optional VIRB action cameras, see also TrailTech and VIRB

To table of contents

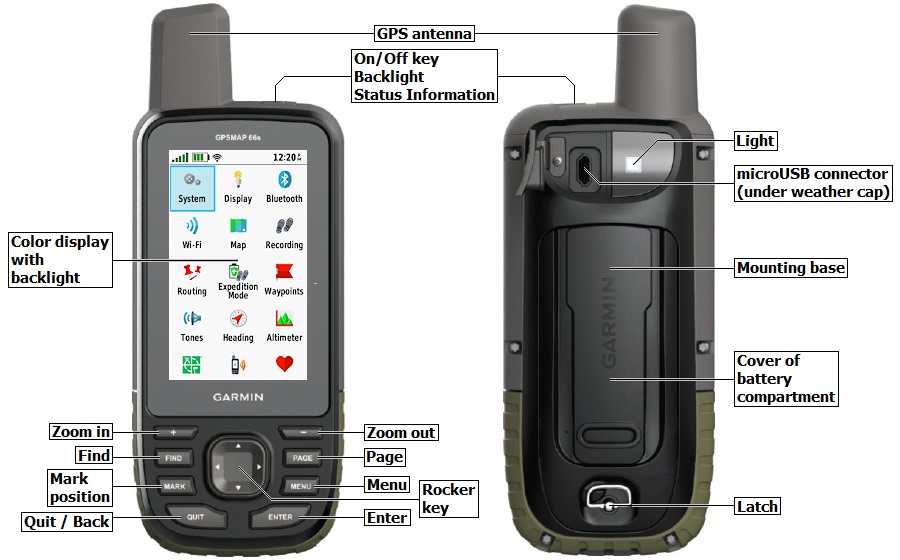

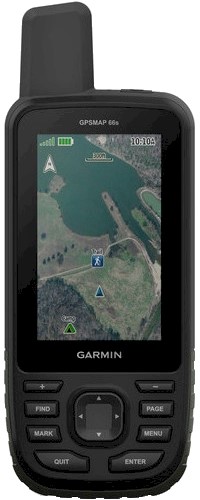

GARMIN GPSMAP 66s/st/sr/i overview:

Note: The image below shows a GPSMAP 66s/66st. The GPSMAP 66sr/66i have a built-in battery and therefore no battery compartment. But the mounting base is the same for all models.

Unit features of the GARMIN GPSMAP 66s/st/sr/i

To table of contents

Main pages of the GPSMAP 66s/st/sr/i:

Note: The images below show the display of the GPSMAP 66s/st/sr/i in true resolution (240x400 pixels). This does not necessarily mean that the display is shown it its true size (38x63 mm, 1.5x2.5 inches). The actual size of these images depends on the properties of your display. Many of the pages are configurable, the pictures are just examples. For the data fields, there is a choice of 95 values, see selection.

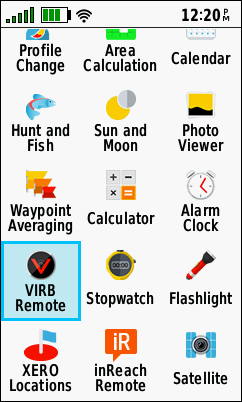

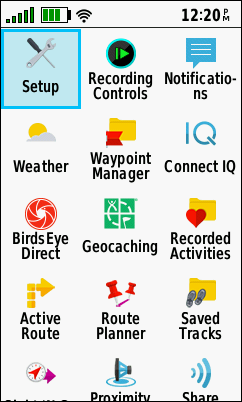

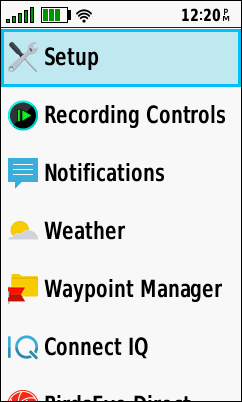

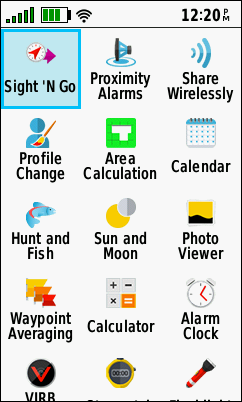

Main Menu 1 (small symbols)	Main Menu 2 (small symbols)	Main Menu 3 (small symbols)	Main Menu as a List

Status line with GPS signal strength, battery status, WiFi indicator and current time Setup - Manage device settings Information and settings about recording the travelled path (tracking) Notifications Weather forecast Manage waypoints Manage Connect IQ Apps Manage BirdsEye satellite imageries Manage geocaches Manage active track Manage active route Manage routes Manage archieved tracks	Status line with GPS signal strength, battery status, WiFi indicator and current time Sight and go - Point at target and lock direction Manage proximity alarms Share data wireless with compatible devices Switch profile Size of the area enclosed by the track Calender Information related to hunting and fishing Sunrise/sunset, moonrise/moonset and moon phases Photo viewer Waypoint Averaging: Increase the precision of the position indication by calculating the average position value of multiple measures Calculator with standard operations and trigonometrical functions Alarm clock, can turn on the device	Status line with GPS signal strength, battery status, WiFi indicator and current time Remote control for optional VIRB action camera Stopwatch with split times (laps) Flashlight with blinking and SOS function XERO locations of XERO options Remote control for optional inReach devices Signal strength and position of the satellites The Main Menu can also be set to large symbols like the Setup shown below.	Status line with GPS signal strength, battery status, WiFi indicator and current time Setup - Manage device settings Information and settings about recording the travelled path (tracking) Notifications Weather forecast Manage waypoints Manage Connect IQ Apps

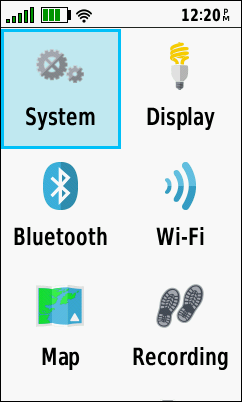

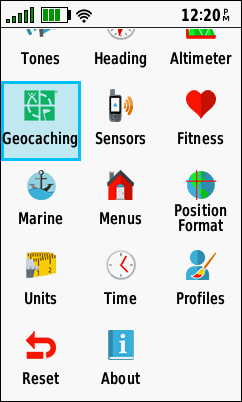

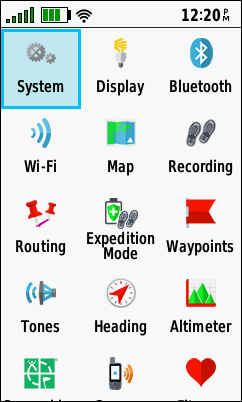

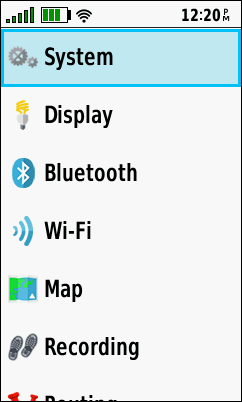

Setup 1 (small symbols)	Setup 2 (small symbols)	Setup (large symbols)	Setup as a List

Status line with GPS signal strength, battery status, WiFi indicator and current time System settings: GPS mode, language, communication configuration, etc. Display settings: Backlight, battery save mode, appearance, etc. Pair with other BlueTooth devices WiFi settings and manage networks Map settings: Orientation, dashboard, level of details, enable and disable maps, etc. Track settings (recording the travelled path): Interval, archiving, color, etc. Routing settings: Activity, calculation method, avoidances, etc. Configure expedition mode Configure naming of saved waypoints Configure tones Configure heading indication Altimeter settings: Mode (barometer or altimeter), profile type, calibrate altitude, etc.	Status line with GPS signal strength, battery status, WiFi indicator and current time Geocache settings: Appearance, manage found caches, configure filters, program chirp devices, etc. Configure ANT- and XERO sensors: Pair with and manage heart rate monitors, speed and cadence sensors, etc. Fitness settings: Auto lap, type of activity, manage user profile, etc. Marine settings: Marine chart mode, appearance, manage alarms Menu settings: Manage style, items, order, etc. Position format settings: Select map datum and spheroid Configure units Time settings: 12 or 24 hours format, select time zone Create and manage profiles Reset trip data, delete waypoints and tracks, reset settings, etc. System info: Software version, unit ID, etc.	Status line with GPS signal strength, battery status, WiFi indicator and current time System settings: GPS mode, language, communication configuration, etc. Display settings: Backlight, battery save mode, appearance, etc. Pair with other BlueTooth devices WiFi settings and manage networks Map settings: Orientation, dashboard, level of details, enable and disable maps, etc. Track settings (recording the travelled path): Interval, archiving, color, etc.	Status line with GPS signal strength, battery status, WiFi indicator and current time System settings: GPS mode, language, communication configuration, etc. Display settings: Backlight, battery save mode, appearance, etc. Pair with other BlueTooth devices WiFi settings and manage networks Map settings: Orientation, dashboard, level of details, enable and disable maps, etc. Track settings (recording the travelled path): Interval, archiving, color, etc.

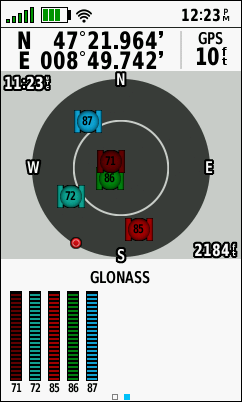

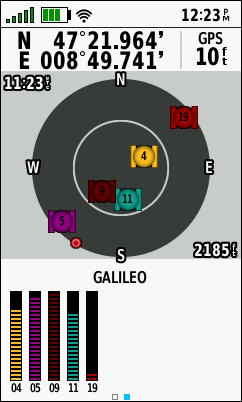

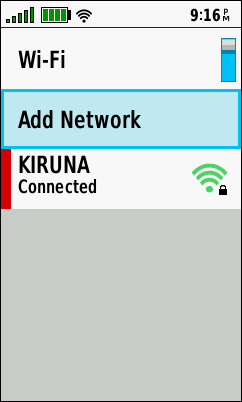

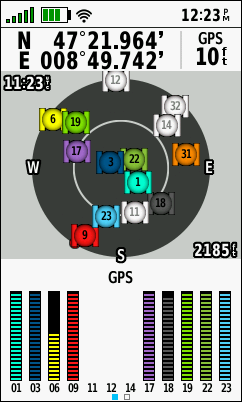

GPS Satellites	GLONASS Satellites	GALILEO Satellites	WiFi Settings

Status line with GPS signal strength, battery status, WiFi indicator and current time Coordinates of the current location Accuracy of the position indication Current time (UTC) Position of the satellites in the sky Current elevation above sea level Strength of the GPS satellites signals	Status line with GPS signal strength, battery status, WiFi indicator and current time Coordinates of the current location Accuracy of the position indication Current time (UTC) Position of the satellites in the sky Current elevation above sea level Strength of the GLONASS satellites signals	Status line with GPS signal strength, battery status, WiFi indicator and current time Coordinates of the current location Accuracy of the position indication Current time (UTC) Position of the satellites in the sky Current elevation above sea level Strength of the GALILEO satellites signals	Status line with GPS signal strength, battery status, WiFi indicator and current time WiFi status Add new network Manage known networks

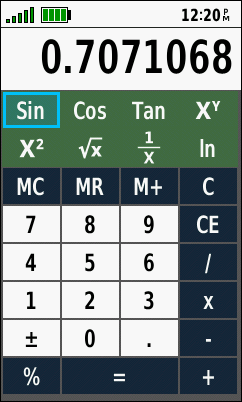

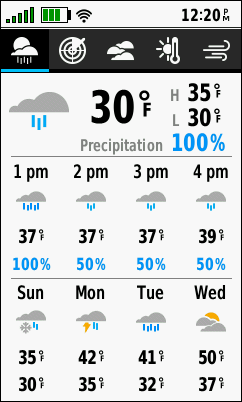

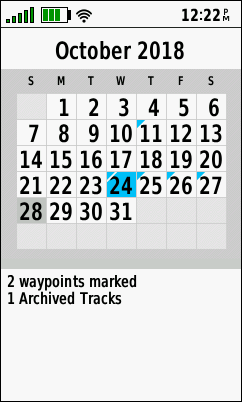

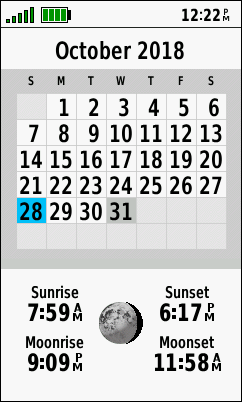

Calculator	Calender	Sun / Moon	Weather Forecast

Status line with GPS signal strength, battery status and current time Result Mathematical functions Memory operations Numbers and operations	Status line with GPS signal strength, battery status, WiFi indicator and current time Month and year Calender with current day (gray), highlighted day (blue) and days with events (blue icon at top left corner) Events at the highlighted date	Status line with GPS signal strength, battery status and current time Calender with current day (gray) and highlighted day (blue) Time of sunrise/sunset and moonrise/moonset plus moon phase at the highlighted date	Status line with GPS signal strength, battery status, WiFi indicator and current time Current weather forecast / change location for forecast / weather radar / cloud cover / wind conditions Current weather Hourly forecast Daily forecast Requires working WiFi connection

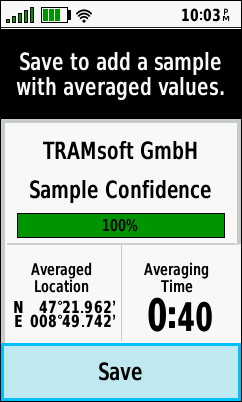

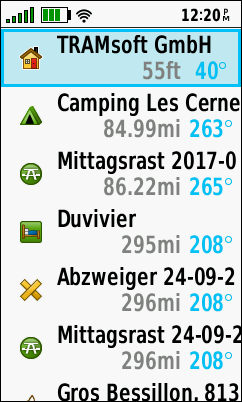

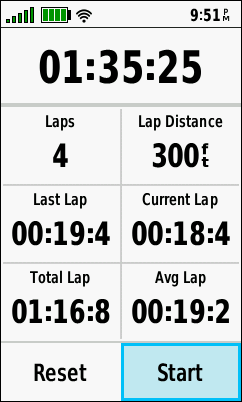

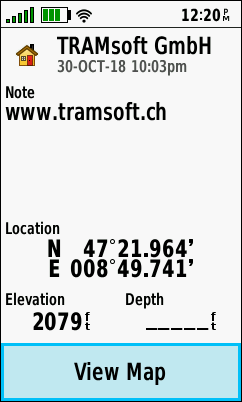

Waypoints	Waypoint	Waypoint Averaging	Stop Watch

Status line with GPS signal strength, battery status, WiFi indicator and current time List of waypoints with symbol, name, distance and direction from the current location	Status line with GPS signal strength, battery status, WiFi indicator and current time Symbol, name and date of last modification Note Coordinates Elevation above sea level Depth View waypoint on map	Status line with GPS signal strength, battery status, WiFi indicator and current time Increases the accuracy of the waypoint's position by averaging multiple readings Name of the waypoint Accuracy (progress) Coordinates of the averaged position Elapsed time Save averaged coordinates of the waypoint	Status line with GPS signal strength, battery status, WiFi indicator and current time Elapsed time (stop watch) Number of completed laps Distance travelled during the current lap Duration of the last completed lap Elapsed time for the current lap Elapsed time until last completed lap Average lap time Mark lap / Reset watch Start / stop watch

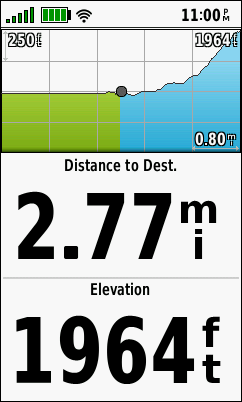

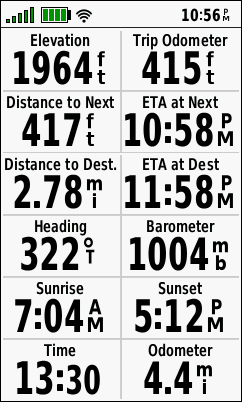

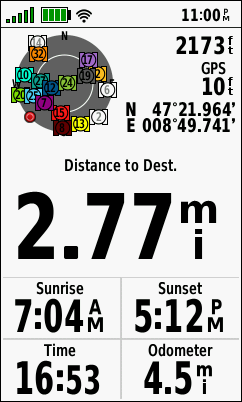

Trip Computer Small Data Fields	Trip Computer Mixed Data Fields	Trip Computer Large Data Fields	Elevation Profile

Status line with GPS signal strength, battery status, WiFi indicator and current time Current elevation above sea level Distance travelled (trip odometer) Current distance to the next waypoint or turn Estimated arrival time at the next turn Current distance to the final destination Estimated arrival time at the final destination Direction in which you are currently moving Calibrated current air pressure (barometer) Time of sunrise at the current position Time of sunset at the current position Trip time since last reset Total distance travelled since last reset For each data field, you can choose from 95 different values¹)	Status line with GPS signal strength, battery status, WiFi indicator and current time Satellite dashboard with position of the satellites in the sky, current elevation above sea level, accuracy of the position indication, coordinates of the current location Current distance to the final destination Time of sunrise at the current position Time of sunset at the current position Trip time since last reset Total distance travelled since last reset For each data field, you can choose from 95 different values¹)	Status line with GPS signal strength, battery status, WiFi indicator and current time Höhenprofil-Anzeige mit Höhenprofil der zurückgelegten Wegstrecke (grün), Höhenprofil der geplanten Route (blau) und Massstäben Current distance to the final destination Current elevation above sea level For each data field, you can choose from 95 different values¹)	Status line with GPS signal strength, battery status and current time Total distance ascended Current elevation above sea level Elevation profile of the travelled path (green) and the planned route (blue) plus distances Enlarged elevation profile with scales

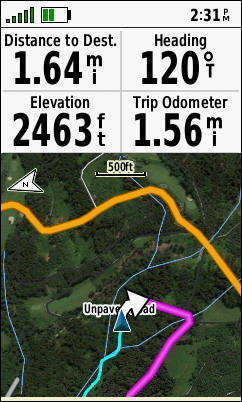

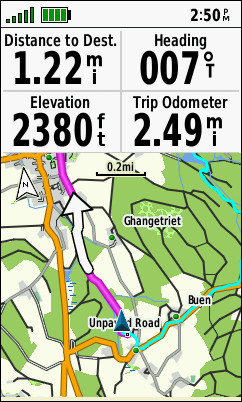

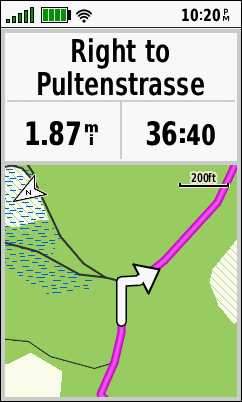

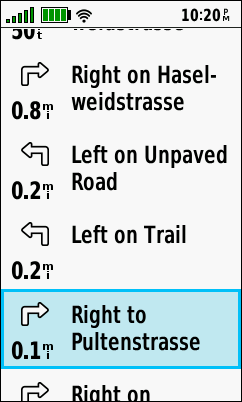

Route on BirdsEye	Route on Map	Zoom	Directions

Note: These features require a map product which supports routing, e.g. the pre-installed map TopoActive Europe (GPSMAP 66st/sr/i only) or an optional map such as Topo Switzerland or City Navigator Europe NT, see MapSource.
Status line with GPS signal strength, battery status and current time Current distance to the final destination Direction in which you are currently moving Current elevation above sea level Distance travelled (trip odometer) BirdsEye satellite image with current position (blue triangle), travelled path (blue line), planned route (violet line) and turn (white arrow) For each data field, you can choose from 95 different values¹)	Status line with GPS signal strength, battery status and current time Current distance to the final destination Direction in which you are currently moving Current elevation above sea level Distance travelled (trip odometer) Map TopoActive Europe with current position (blue triangle), travelled path (blue line), planned route (violet line) and turn (white arrow) For each data field, you can choose from 95 different values¹)	Status line with GPS signal strength, battery status, WiFi indicator and current time Direction Distance to this turn Estimated travel time to this turn Enlarged map (zoom) with planned route (violet line) and turn (white arrow)	Status line with GPS signal strength, battery status, WiFi indicator and current time Type of turn, distance between turns and directions

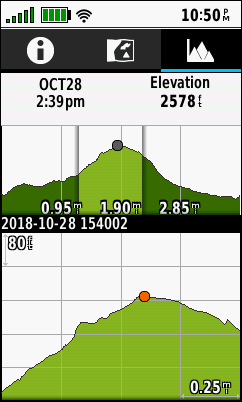

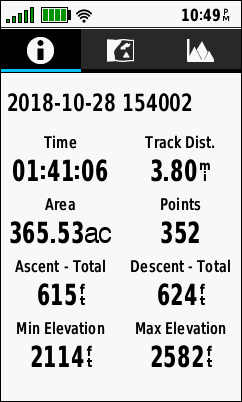

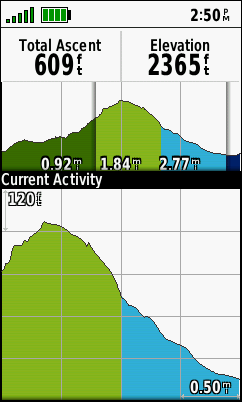

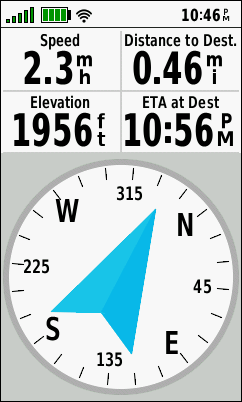

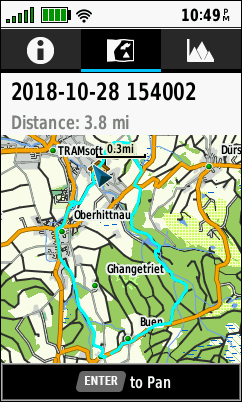

Compass	Track - Info	Track - Map	Track - Elevation Profile

Status line with GPS signal strength, battery status, WiFi indicator and current time Current speed Current distance to the final destination Current elevation above sea level Estimated arrival time at the final destination Compass with direction to next turn For each data field, you can choose from 95 different values¹)	Status line with GPS signal strength, battery status, WiFi indicator and current time Info / Map / Elevation Profile Name of the track Duration Travelled distance Area enclosed by the travelled path Number of track points Total distance ascended Total distance descended Lowest altitude above sea level during the trip Highest altitude above sea level during the trip	Status line with GPS signal strength, battery status, WiFi indicator and current time Info / Map / Elevation Profile Name of the track with distance Map with current position (blue triangle), waypoint (house icon) and travelled path (blue line)	Status line with GPS signal strength, battery status, WiFi indicator and current time Info / Map / Elevation Profile Date and start time of the trip Altitude at the marked location (red rsp. gray dot) Elevation profile with distances Enlarged elevation profile with scales

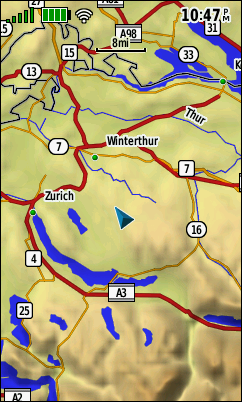

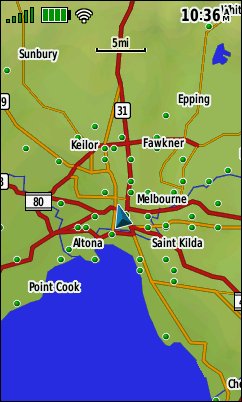

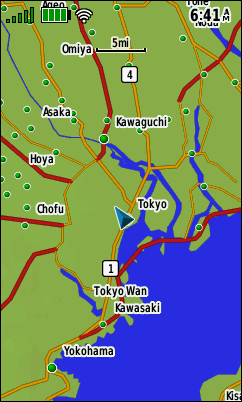

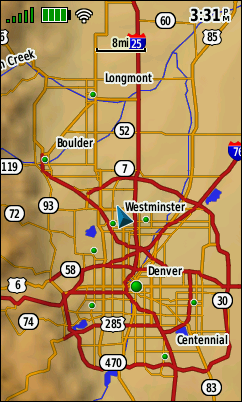

Switzerland (Base Map)	USA (Base Map)	Australia (Base Map)	Japan (Base Map)

Examples of pre-installed base map (all models)

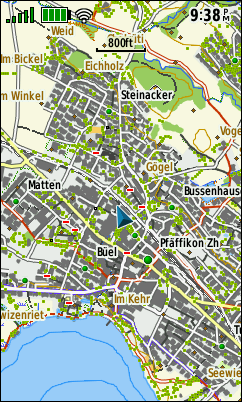

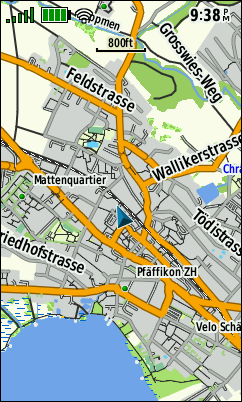

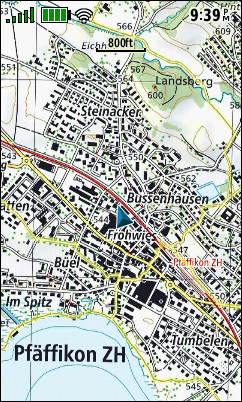

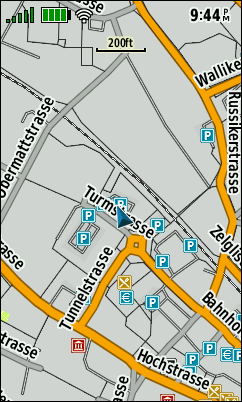

TopoActive Europe	TopoActive Europe Details	Topo Switzerland - Vector View	Topo Switzerland - Pattern View

Examples pre-installed maps TopoActive Europe (GPSMAP 66st/sr/i only)		Example Topo Switzerland in vector view	Example Topo Switzerland in pattern view
		These screenshots were taken with the optional map Topo Switzerland.

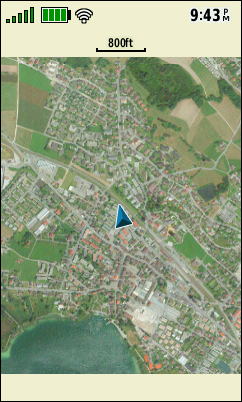

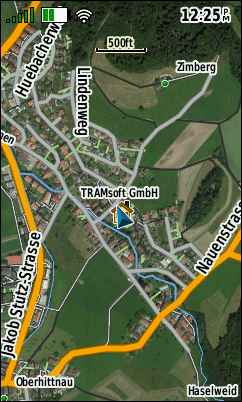

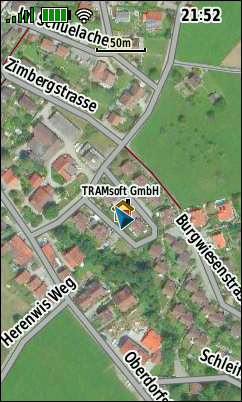

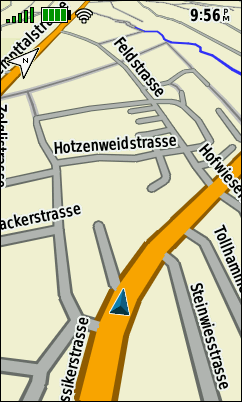

City Navigator Europe Automotive Mode	BirdsEye (1 of 3)	BirdsEye (2 of 3)	BirdsEye (3 of 3)

Example taken with the optional map City Navigator Europe in automotive mode, see MapSource	Examples of BirdsEye satellite images at different scales

Data fields selection on pages with user selectable data fields:

For each data field, you can choose one from the following 95 values.
You can configure the device to show values in english or metric units.

No	Name	Explanation
1	24 hr. Max. Temperature	Maximum ambient temperature during the last 24 hours (requires optional temperature sensor).
2	24 hr. Min. Temperature	Minimum ambient temperature during the last 24 hours (requires optional temperature sensor).
3	Accuracy of GPS	Current accuracy of your GPS determined position.
4	Activity Distance	Distance travelled during the current activity.
5	Alarm Timer	Time of the countdown timer
6	Ambient Pressure	Uncalibrated current pressure.
7	Ascent - Average	Average vertical distance of ascent since the last reset.
8	Ascent - Maximum	Maximum ascent rate.
9	Ascent - Total	Total vertical distance of ascent since the last reset.
10	Automotive Turn	Direction of the next turn in the route.
11	Average Cadence	Average number of revolutions of the crank arm per minute (requires optional bike speed and cadence sensor).
12	Average HR %Max.	Average percentage of maximum heart rate for the current activity (heart beats per minute, requires optional heart rate monitor).
13	Average Lap	Average time for all completed laps for the current activity.
14	Avg. HR	Average heart rate for the current activity (heart beats per minute, requires optional heart rate monitor).
15	Barometer	Calibrated current pressure.
16	Battery Level	Battery charge level.
17	Bearing	Compass direction from a position to a destination measured to the nearest degree; also called an azimuth. In a GPS receiver, bearing usually refers to the direction to a waypoint.
18	Cadence	Revolutions of the crank arm per minute (requires optional bike speed and cadence sensor).
19	Calories	Calories burned during the current activity (requires optional power meter).
20	Compass Heading	Direction the device is pointing to based on the built in electronic compass.
21	Course	Direction from the beginning landmark of a course to its destination (measured in degrees, radians, or mils) or the direction from a route waypoint to the next waypoint in the route segment.
22	Current Lap	Elapsed time for the current lap.
23	Date	Current date.
24	Depth	Depth of water (requires NMEA input from a sonar device).
25	Descent - Average	Average vertical distance of descents.
26	Descent - Maximum	Maximum descent rate.
27	Descent - Total	Total distance descended.
28	Distance to Dest.	Current distance to the final destination.
29	Distance to Next	Current distance to the next waypoint or turn.
30	Elapsed Activity Time	Elapsed time for the current activity including rest periodes.
31	Elevation	Current altitude above sea level.
32	Elevation Above Ground	Current elevation above ground.
33	Elevation - Maximum	Highest altitude above sea level since last reset.
34	Elevation - Minimum	Lowest altitude above sea level since last reset.
35	ETA at Destination	Estimated arrival time at the final destination.
36	ETA at Next	Estimated arrival time at the next turn.
37	Glide Ratio	Ratio of horizontal distance travelled to vertical distance.
38	Glide Ratio to Dest.	Glide ratio required to ascend rsp. descend from your current position and elevation to the destination's elevation.
39	GPS Elevation	Current altitude above sea level based on GPS.
40	GPS Heading	Direction in which you are currently moving based on GPS.
41	GPS Signal Strength	Strength of satellites' signals.
42	Grade	Current grade computed from elevation change over distance.
43	Heading	Direction in which you are currently moving.
44	Heart Rate	Current heart rate (heart beats per minute, requires optional heart rate monitor).
45	Heart Rate - %Max.	Percentage of maximum heart rate (heart beats per minute, requires optional heart rate monitor).
46	Heart Rate Zone	Current heart rate zone (1..5). Default zones are based on the user profile, the maximum heart rate and the rest heart rate, but may be changed by the user (requires optional heart rate monitor).
47	Lap Ascent	Total vertical distance of ascent for the current lap.
48	Lap Cadence	Average number of revolutions of the crank arm per minute (cadence) for the current lap (requires optional bike speed and cadence sensor).
49	Lap Descent	Total vertical distance of descent for the current lap.
50	Lap Distance	Distance travelled during the current lap.
51	Lap Heart Rate Percent	Average percentage of maximum heart rate for the for lap (heart beats per minute, requires optional heart rate monitor).
52	Lap HR	Average heart rate for the for the current lap (heart beats per minute, requires optional heart rate monitor).
53	Laps	Number of completed laps during the current activity.
54	Lap Speed	Average speed for the current lap.
55	Last Lap Ascent	Total vertical distance of ascent for the last completed lap.
56	Last Lap Cadence	Average number of revolutions of the crank arm per minute (cadence) for the last completed lap (requires optional bike speed and cadence sensor).
57	Last Lap Descent	Total vertical distance of descent for the last completed lap.
58	Last Lap Distance	Distance travelled during the last completed lap.
59	Last Lap HR	Average heart rate for the for the last completed lap (heart beats per minute, requires optional heart rate monitor).
60	Last Lap Speed	Average speed for the last completed lap.
61	Last Lap Time	Duration of the last completed lap.
62	Location (lat/lon)	Current location as latitude/longitude coordinates.
63	Location (selected)	Current location indicated in the selected format (datum).
64	Location of Destination	Coordinates of the final destination of the current route.
65	None	Blank data field.
66	Odometer	Total distance travelled since last reset*).
67	Off Course	The distance you are off the desired course.
68	Pointer	Arrow that indicates the direction to travel to the next point on a route.
69	Speed	Current speed.
70	Speed Limit	Current speed limit based on the information provided by the map (requires optional map with speed data).
71	Speed - Maximum	Maximum speed since last reset*).
72	Speed - Moving Avg.	Average speed without the time with no motion since the last reset*).
73	Speed - Overall Avg.	Average speed including the time with no motion since the last reset*).
74	Stopwatch Timer	Elapsed time for the current activity.
75	Sunrise	Time of sunrise at the current position.
76	Sunset	Time of sunset at the current position.
77	Temperature	Current ambient temperature (requires optional temperature sensor).
78	Temperature - Water	Temperature of the water (requires an external data acquisition device).
79	Time of Day	Current time.
80	Time to Destination	Estimated travel time to the final destination.
81	Time to Next	Estimated travel time to the next waypoint (turn, crossing etc.).
82	To Course	Direction to the planned course.
83	Total Lap	Elapsed time for all completed laps.
84	Trip Odometer	Travelled distance since last reset*).
85	Trip Time	Total elapsed time including the time with no motion since last reset*).
86	Trip Time - Moving	Time with motion since last reset*).
87	Trip Time - Stopped	Time without motion since last reset*).
88	Turn	Direction of and distance to the next turn on a route.
89	Velocity Made Good	Rate of closure to the destination, based upon your current speed and course.
90	Vertical Dist. to Dest.	Elevation difference between the current position and the final destination of the current route.
91	Vertical Dist. to Next	Elevation difference between the current position and the next turn along the current route.
92	Vertical Speed	Current ascending or descending speed.
93	Vertical Speed to Dest.	Required rate of ascent or descent to reach the final destination.
94	Waypoint at Dest.	Name of the waypoint at the final destination.
95	Waypoint at Next	Name of the next waypoint along the current route.

*) You may reset the trip-counters, the Odometer and the Maximum Speed separately.

To table of contents

Prices:

GARMIN GPSMAP 66s			CHF 448
the package includes the following items: GARMIN GPSMAP 66s USB connection cable for data exchange with a PC Carabiner Printed quick start guides in different languages including English, French, German and Italian Owner's manuals and quick start guides in various languages are available for download either from here or from www.garmin.com We will install the most recent version of the firmware available at the time of shipment We configure the GPS before shipping, so it comes ready to use

GARMIN GPSMAP 66s plus µSD memory card Topo Switzerland V2 PRO			CHF 548
the package includes the following items: Everything listed above under GPSMAP 66s Topographic Swiss map on µSD memory card (full coverage) [examples and details] We will install the most recent version of the firmware available at the time of shipment We configure the GPS before shipping, so it comes ready to use


GARMIN GPSMAP 66i			CHF 748
the package includes the following items: GARMIN GPSMAP 66i Pre-installed map TopoActive Europe, see description Satellite subscription required, see www.geosalliance.com USB connection cable for data exchange with a PC Carabiner Printed quick start guides in different languages including English, French, German and Italian Owner's manuals and quick start guides in various languages are available for download either from here or from www.garmin.com We will install the most recent version of the firmware available at the time of shipment We configure the GPS before shipping, so it comes ready to use

GARMIN GPSMAP 66i plus µSD memory card Topo Switzerland V2 PRO			CHF 838
the package includes the following items: Everything listed above under GPSMAP 66i Satellite subscription required, see www.geosalliance.com Topographic Swiss map on µSD memory card (full coverage) [examples and details] We will install the most recent version of the firmware available at the time of shipment We configure the GPS before shipping, so it comes ready to use

To table of contents

Options:

Mounting bracket with USB power cable for the GPSMAP 66sr and 66i only	CHF 40	[Picture and details]
Mounting kit with suction cup including adhesive disk to be fixed on the dashboard (Does not include mounting bracket)	CHF 20	[Picture and details]
Dashboard discs	CHF 23	[Picture and details]
Power supply without USB cable	CHF 17	[Picture and details]
12 USB charger	CHF 29	[Picture and details]
USB data cable with micro-USB connector (one such USB cable comes with the GPSMAP 66s/st/sr/i )	CHF 17	[Picture and details]
Rechargeable NiMH battery pack for the GPSMAP 66s/66st only	CHF 36	[Picture and details]
Belt clip	CHF 13	[Picture and details]
Retractable lanyard	CHF 28	[Picture and details]
Bike mounting kit	CHF 20	[Picture and details]
4.0 GB micro SDHC memory card including µSD to SD adapter	CHF 9	[Picture and details]
8.0 GB micro SDHC memory card including µSD to SD adapter	CHF 16	[Picture and details]
16.0 GB micro SDHC memory card including µSD to SD adapter	CHF 19	[Picture and details]
HRM-Run chest belt with heart rate monitor and G-sensor V1 (same soft fabric strap like the premium chest belt) (Such a HRM-Run chest belt comes with the Forerunner 920XT Pack)	CHF 68	[Picture and details]
Belt for HRM-Run heart rate monitor	CHF 38	[Picture and details]
HRM-Run chest belt with heart rate monitor and G-sensor V2	CHF 68	[Picture and details]
Wireless Tempe temperature sensor	CHF 44	[Picture and details]
Chirp geocaching beacon	CHF 25	[Picture and details]

All options for the GARMIN GPSMAP 66s/st/sr/i in detail.

MapSource, various µSD memory cards, DVDs and CDroms with topographic and street maps (products on DVD or CDrom require a computer and a cable for data exchange).

To table of contents

Downloads:

Here we provide additional documentation and software updates:

Owner's manual for GPSMAP 66s/st/sr (as PDF):
- English (2.7 MB)
- French (2.7 MB)
- German (2.7 MB)
- Italian (2.7 MB)
Owner's manual for GPSMAP 66i (as PDF):
- English (2.3 MB)
- French (2.3 MB)
- German (2.3 MB)
- Italian (2.3 MB)
Firmware Upgrades (Connect your device with your Wi-Fi or use GARMIN Express or Web-Updater to install the latest firmware)
- GPSMAP 66s/st: List of changes made with Firmware Upgrades (V9.90)
- GPSMAP 66sr: List of changes made with Firmware Upgrades (V4.90)
- GPSMAP 66i: List of changes made with Firmware Upgrades (V8.80)

If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.

To table of contents

Order:

To order the GARMIN GPSMAP 66s/sr/i as well as options please:

Click on the price or the shopping basket symbol to add the item you wish to purchase to the shopping basket. Your browser must accept cookies, otherwise the shopping basket won't work.
If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents

Specifications and packaging of the products are subject to change without notice.
